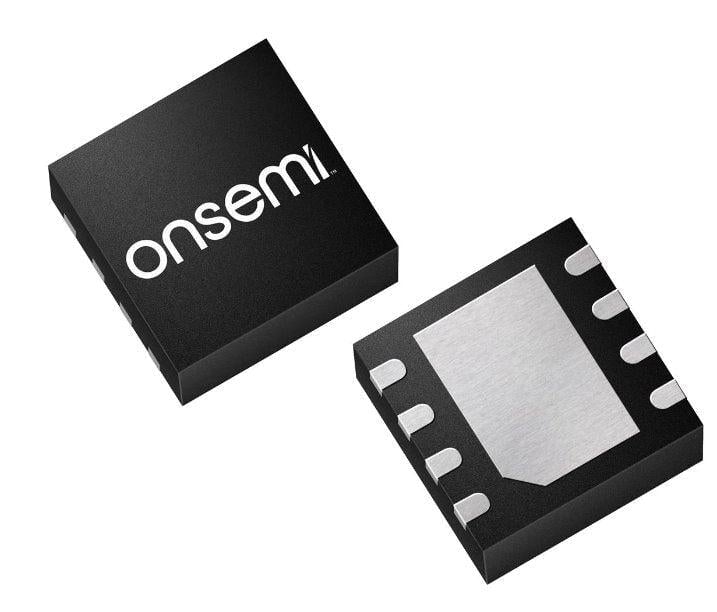

Onsemi Ultra-Low Noise and High PSRR 500 mA, Part #: NCV8165ML330TBG | DEX is a linear regulator capable of supplying 500 mA output current. Designed to meet the requirements of RF and analog circuits, the NCV8165 device provides low noise, high PSRR, low quiescent current, and very good load/line transients. The device is designed to work with a 1 F input and a 1 F output ceramic capacitor. It is available in DFNW8 3 mm x 3 mm package with wettable flanks.
Features:
• Operating Input Voltage Range: 1.9 V to 5.5 V • Available in Fixed Voltage Option: 1.8 V to 5.2 V • ±2% Accuracy Over Load/Temperature • Ultra Low Quiescent Current Typ. 12 A • Standby Current: Typ. 0.1 A • Very Low Dropout: 190 mV at 500 mA • Ultra High PSRR: Typ. 85 dB at 20 mA, f = 1 kHz • Ultra Low Noise: 8.5 VRMS • Stable with a 1 F Small Case Size Ceramic Capacitors • Available in −DFNW8 0.65P, 3 mm x 3 mm x 0.9 mm Package • NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications:
• Battery−powered Equipment • Wireless LAN Devices • Smartphones, Tablets • Cameras, DVRs, STB and Camcorders
