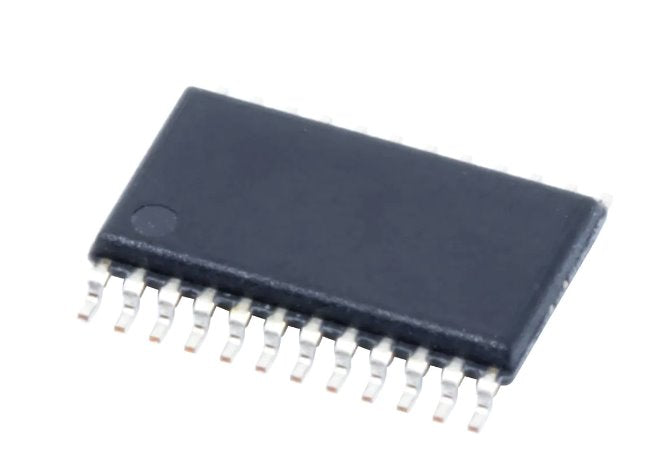

Phase-Shifted Full-Bridge Controller With Synchronous Rectification part #:UCC28950TPWRQ1

Features

-Qualified for Automotive Applications

-AEC-Q100 Qualified With the Following Results:

* Device Temperature Grade 1: –40ºC to 125ºC Ambient Operating Temperature Range

* Device HBM ESD Classification Level H2

* Device CDM ESD Classification Level C3B

- Enhanced Wide-Range Resonant Zero-Voltage Switching (ZVS) Capability

- Direct Synchronous Rectifier (SR) Control

- Light-Load Efficiency Management Including:

* Burst Mode Operation

* Discontinuous Conduction Mode (DCM), Dynamic SR On/Off Control With Programmable Threshold

* Programmable Adaptive Delay

- Average- or Peak-Current Mode Control With Programmable Slope Compensation and Voltage-Mode Control

- Closed-Loop Soft-Start and Enable Function

- Programmable Switching Frequency up to 1 MHz with Bidirectional Synchronization

- (±3%) Cycle-by-Cycle Current Limit Protection

Phase-Shifted Full-Bridge Controller With Synchronous Rectification part #:UCC28950TPWRQ1

TEX:UCC28950TPWRQ1
