STMicroelectronics

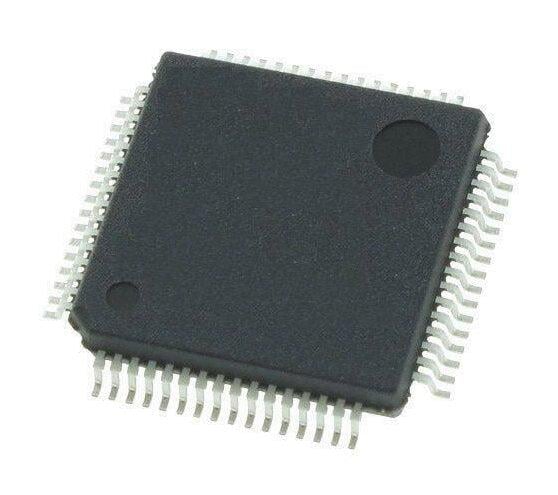

STMicroelectronics XL-density performance line ARM®-based 32-bit MCU, Part #: STM32F103RGT6 | DEX

STMicroelectronics XL-density performance line ARM®-based 32-bit MCU, Part #: STM32F103RGT6 | DEX

Regular price $255.08 USD
Regular price $255.08 USD Sale price $255.08 USD
Sale Sold out
Shipping calculated at checkout.

STMicroelectronics XL-density performance line ARM®-based 32-bit MCU, Part #: STM32F103RGT6 | DEX features:

• Core: ARM® 32-bit Cortex®-M3 CPU with MPU – 72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access – Single-cycle multiplication and hardware division

• Memories – 768 Kbytes to 1 Mbyte of Flash memory – 96 Kbytes of SRAM – Flexible static memory controller with 4 Chip Select. Supports Compact Flash, SRAM, PSRAM, NOR and NAND memories – LCD parallel interface, 8080/6800 modes

• Clock, reset and supply management – 2.0 to 3.6 V application supply and I/Os – POR, PDR, and programmable voltage detector (PVD) – 4-to-16 MHz crystal oscillator – Internal 8 MHz factory-trimmed RC – Internal 40 kHz RC with calibration – 32 kHz oscillator for RTC with calibration

• Low power – Sleep, Stop and Standby modes – VBAT supply for RTC and backup registers

• 3 × 12-bit, 1 µs A/D converters (up to 21 channels) – Conversion range: 0 to 3.6 V – Triple-sample and hold capability – Temperature sensor

• 2 × 12-bit D/A converters

• DMA: 12-channel DMA controller – Supported peripherals: timers, ADCs, DAC, SDIO, I2Ss, SPIs, I2Cs and USARTs

• Debug mode – Serial wire debug (SWD) & JTAG interfaces – Cortex®-M3 Embedded Trace Macrocell™

• Up to 112 fast I/O ports – 51/80/112 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant

• Up to 17 timers – Up to ten 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input – 2 × 16-bit motor control PWM timers with dead-time generation and emergency stop – 2 × watchdog timers (Independent and Window) – SysTick timer: a 24-bit downcounter – 2 × 16-bit basic timers to drive the DAC

• Up to 13 communication interfaces – Up to 2 × I2C interfaces (SMBus/PMBus) – Up to 5 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control) – Up to 3 SPIs (18 Mbit/s), 2 with I2S interface multiplexed – CAN interface (2.0B Active) – USB 2.0 full speed interface – SDIO interface

• CRC calculation unit, 96-bit unique ID

• ECOPACK® packages



SLE:STM32F103RGT6

STM32F103RGT6
