TAIWAN SEMICONDUCTOR

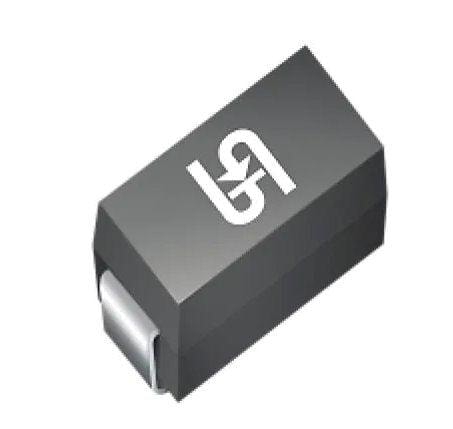

Taiwan Semiconductor Manufacturing, High Efficient Surface Mount Rectifiers part # BYG23M E3 | Rectifier | DEX

Taiwan Semiconductor Manufacturing, High Efficient Surface Mount Rectifiers part # BYG23M E3 | Rectifier | DEX

Regular price $0.46 USD
Regular price $0.46 USD Sale price $0.46 USD
Sale Sold out
Shipping calculated at checkout.

Taiwan Semiconductor Manufacturing, part # BYG23M E3 has these features: - Glass passivated junction chip. - Ideal for automated placement - Fast switching for high efficiency - High surge current capability - Moisture sensitivity level: level 1, per J-STD-020 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition - AEC-Q101 available



Typical Application

The superior avalanche capability of BYG23M is specially suited for free-wheeling, clamping, snubbering, demagnetization in power supplies and other power switching applications.



Mechanical Data

Case: DO-214AC (SMA) Molding compound, UL flammability classification rating 94V-0 Base P/N with suffix "G" on packing code - green compound (halogen-free) Terminal: Matte tin plated leads, solderable per JESD22-B102 Meet JESD 201 class 2 whisker test Polarity: Indicated by cathode band Weight: 0.064 g (approximately)



TSM:BYG23M E3

BYG23M E3
