Taiwan Semiconductor Manufacturing, 2A, 50V - 600V Surface Mount Super Fast Rectifiers part # ES2CA R2 | Rectifier | DEX

Taiwan Semiconductor Manufacturing, part # ES2CA R2 has these features: - Glass passivated junction chip - Ideal for automated placement - Low profile package - Built-in strain relief - Super fast recovery time for high efficiency - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition

Mechanical Data

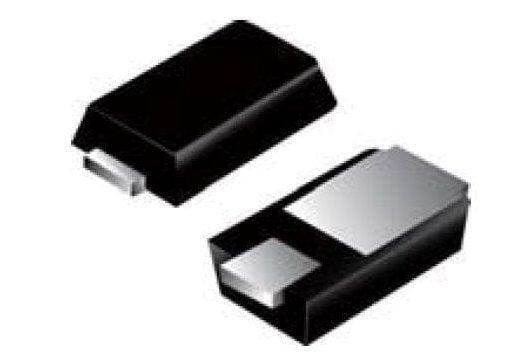

Case: DO-214AC (SMA) Molding compound, UL flammability classification rating 94V-0 Moisture sensitivity level: level 1, per J-STD-020 Part No. with suffix "H" means AEC-Q101 qualified Packing code with suffix "G" means green compound (halogen-free) Terminal: Matte tin plated leads, solderable per JESD22-B102 Meet JESD 201 class 2 whisker test Polarity: Indicated by cathode band Weight: 0.06 g (approximately)

TSM:ES2CA R2

ES2CA R2
