Taiwan Semiconductor Manufacturing, 2A, 50V - 600V Surface Mount Super Fast Rectifier part # ES2HHR4G | Rectifier | DEX

Taiwan Semiconductor Manufacturing, part # ES2HHR4G has these features: ● Glass passivated junction chip ● Ideal for automated placement ● Low profile package ● Super fast recovery time for high efficiency ● Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC ● Halogen-free according to IEC 61249-2-21

Applications

● Switching mode power supply (SMPS) ● Adapters ● Lighting application ● Converter

Mechanical Data

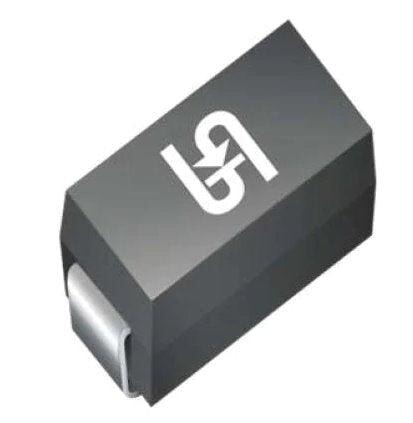

● Case: DO-214AA (SMB) ● Molding compound meets UL 94V-0 flammability rating ● Packing code with suffix "G" means green compound (halogen-free) ● Part no. with suffix “H” means AEC-Q101 qualified ● Terminal: Matte tin plated leads, solderable per J-STD-002 ● Meet JESD 201 class 2 whisker test ● Polarity: As marked ● Weight: 0.09 g (approximately)

TSM:ES2HHR4G

ES2HHR4G
