Taiwan Semiconductor Manufacturing, part # ES3B R6 has these features: ● Glass passivated chip junction ● Ideal for automated placement ● Super fast recovery time for high efficiency ● Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC ● Halogen-free according to IEC 61249-2-21
Applications
● High frequency rectification ● Freewheeling application ● Switching mode converters and inverters in computer, automotive and telecommunication
Mechanical Data

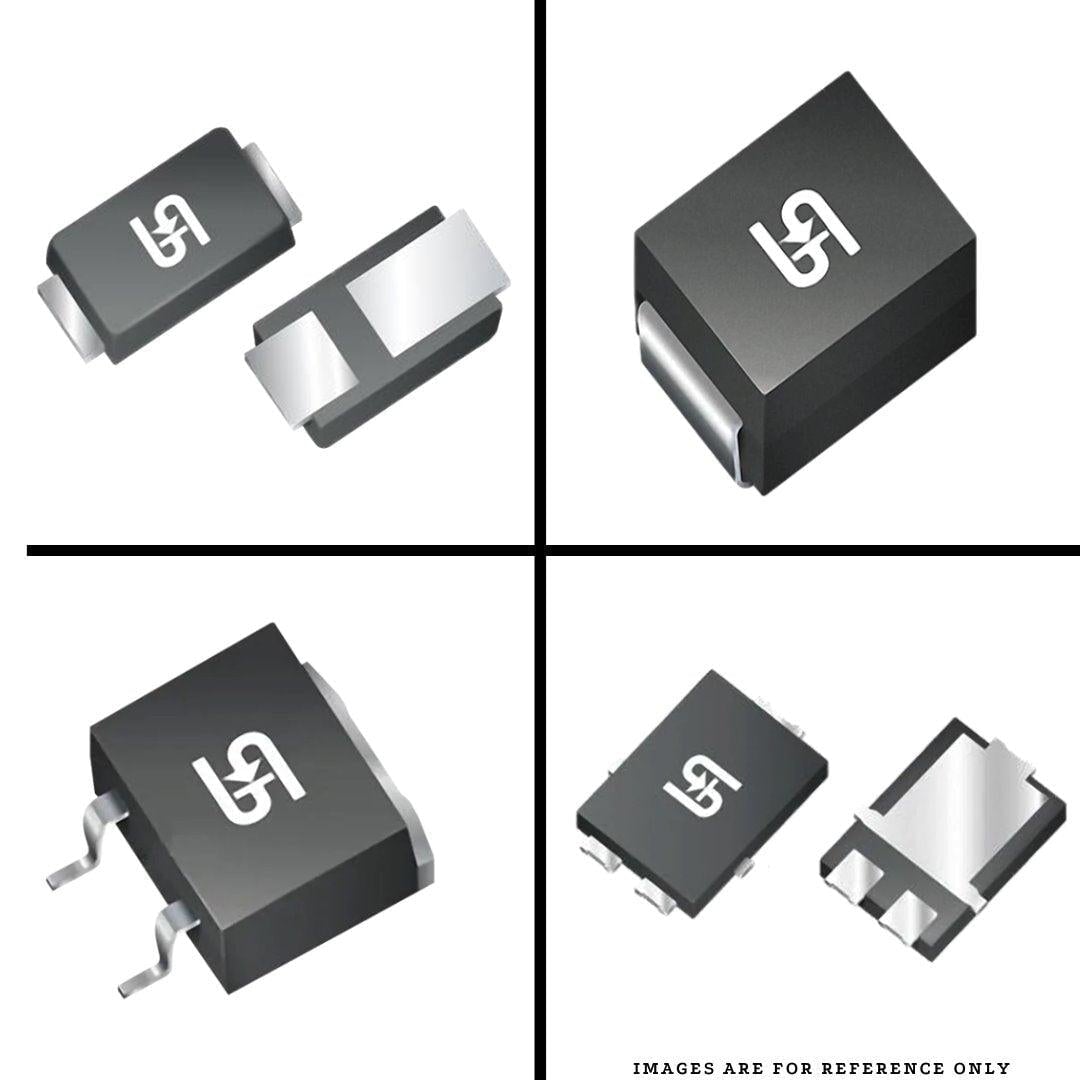

● Case: DO-214AB (SMC) ● Molding compound meets UL 94V-0 flammability rating ● Part no. with suffix "H" means AEC-Q101 qualified ● Packing code with suffix "G" means green compound (halogen-free) ● Moisture sensitivity level: level 1, per J-STD-020 ● Terminal: Matte tin plated leads, solderable per J-STD-002 ● Meet JESD 201 class 2 whisker test ● Polarity: As marked ● Weight: 0.21 g (approximately)
TSM:ES3B R6
ES3B R6
