Taiwan Semiconductor Manufacturing, 3A, 50V - 600V Surface Mount Super Fast Rectifier part # ES3F R6 | Rectifier | DEX
Taiwan Semiconductor Manufacturing, 3A, 50V - 600V Surface Mount Super Fast Rectifier part # ES3F R6 | Rectifier | DEX
Couldn't load pickup availability
Taiwan Semiconductor Manufacturing, part # ES3F R6 has these features: ● Glass passivated chip junction ● Ideal for automated placement ● Super fast recovery time for high efficiency ● Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC ● Halogen-free according to IEC 61249-2-21
Applications
● High frequency rectification ● Freewheeling application ● Switching mode converters and inverters in computer, automotive and telecommunication
Mechanical Data
● Case: DO-214AB (SMC) ● Molding compound meets UL 94V-0 flammability rating ● Part no. with suffix "H" means AEC-Q101 qualified ● Packing code with suffix "G" means green compound (halogen-free) ● Moisture sensitivity level: level 1, per J-STD-020 ● Terminal: Matte tin plated leads, solderable per J-STD-002 ● Meet JESD 201 class 2 whisker test ● Polarity: As marked ● Weight: 0.21 g (approximately)
TSM:ES3F R6
ES3F R6

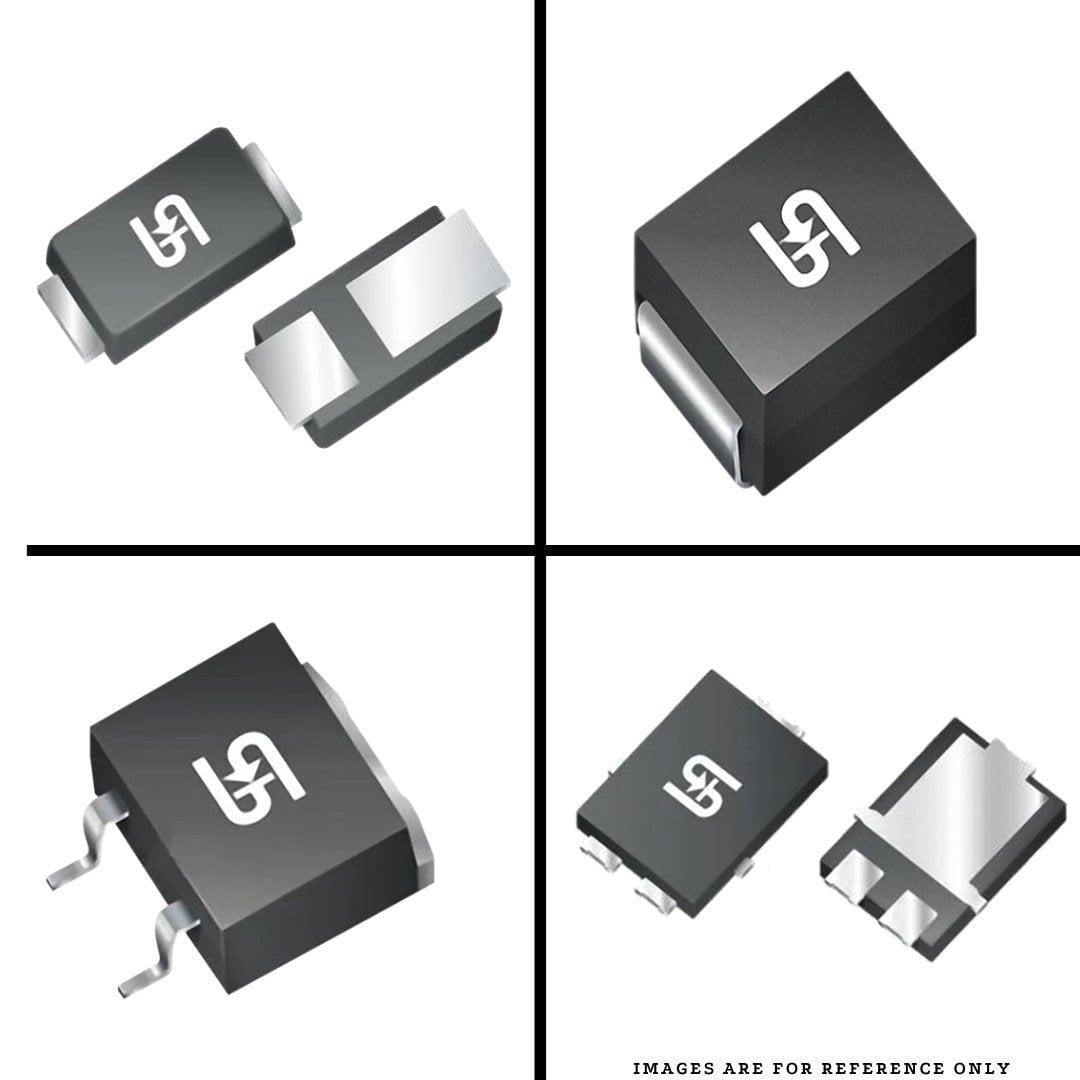

![Taiwan Semiconductor Manufacturing, 3A, 50V - 600V Surface Mount Super Fast Rectifier part # ES3F R6 | Rectifier | DEX Information Technology TAIWAN SEMICONDUCTOR](http://store.dex.com/cdn/shop/files/taiwan-semiconductor-manufacturing-3a-50v-600v-surface-mount-super-fast-rectifier-part-es3f-r6-rectifier-dex-information-technology-taiwan-semiconductor-276226.jpg?v=1717531859&width=1445)
