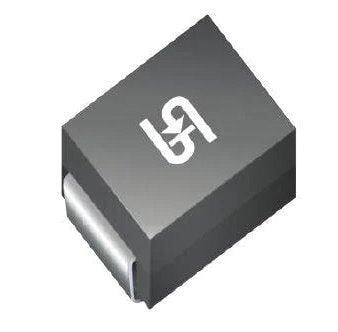

Taiwan Semiconductor Manufacturing, Surface Mount Ultra Fast Rectifiers part # ESH3D R6G | Rectifier | DEX

Taiwan Semiconductor Manufacturing, part # ESH3D R6G has these features: - Glass passivated junction chip - Ideal for automated placement - Low profile package - Ultra fast recovery time for high efficiency - Moisture sensitivity: level 1, per J-STD-020 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition

Mechanical Data

Case：DO-214AB(SMC) Molding compound, UL flammability classification rating 94V-0 Base P/N with suffix "G" on packing code - halogen-free, RoHS compliant Terminal：Matte tin plated leads, solderable per JESD22-B102 Meet JESD 201 class 1A whisker test Polarity：Indicated by cathode band Weight：0.2 gram (approximately)

TSM:ESH3D R6G

ESH3D R6G
