Taiwan Semiconductor Manufacturing

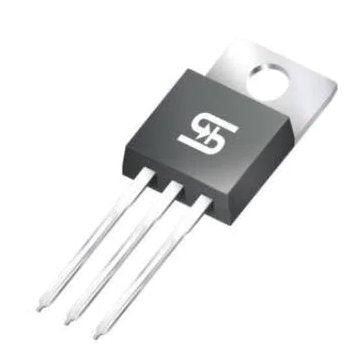

Taiwan Semiconductor Manufacturing, 16A, 50V - 1000V High Efficient Rectifier part # HER1603G C0G | Rectifier | DEX

Taiwan Semiconductor Manufacturing, 16A, 50V - 1000V High Efficient Rectifier part # HER1603G C0G | Rectifier | DEX

Regular price $1.81 USD
Regular price $1.81 USD Sale price $1.81 USD
Sale Sold out
Shipping calculated at checkout.

Taiwan Semiconductor Manufacturing, part # HER1603G C0G has these features: ● AEC-Q101 qualified available ● High efficiency, low VF ● High current capability ● High surge current capability ● Low power loss ● RoHS Compliant ● Halogen-free according to IEC 61249-2-21



Applications

● DC to DC converters ● Switching mode converters and inverters ● Freewheeling application



Mechanical Data

● Case: TO-220AB ● Molding compound meets UL 94V-0 flammability rating ● Terminal: Matte tin plated leads, solderable per J-STD-002 ● Mounting torque: 0.56 N⋅m maximum ● Meet JESD 201 class 2 whisker test ● Polarity: As marked ● Weight: 1.82g (approximately)



TSM:HER1603G C0G

HER1603G C0G
