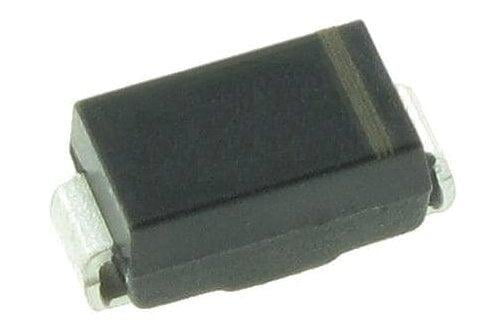

Taiwan Semiconductor Manufacturing, High Efficient Surface Mount Rectifiers part # HS2K R5 | Rectifier | DEX

Taiwan Semiconductor Manufacturing, part # HS2K R5 has these features: - Low power loss, high efficiency - Ideal for automated placement - Glass passivated junction chip. - Fast switching for high efficiency - Moisture sensitivity level: level 1, per J-STD-020 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition

Mechanical Data

Case: DO-214AA (SMB) Molding compound, UL flammability classification rating 94V-0 Base P/N with suffix "G" on packing code - green compound (halogen-free) Base P/N with prefix "H" on packing code - AEC-Q101 qualified Terminal: Matte tin plated leads, solderable per JESD22-B102 Meet JESD 201 class 1A whisker test with prefix "H" on packing code meet JESD 201 class 2 whisker test Polarity: Indicated by cathode band Weight: 0.093 g (approximately)

TSM:HS2K R5

HS2K R5
