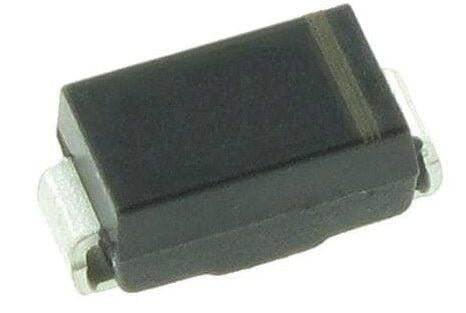

Taiwan Semiconductor Manufacturing, 3A, 50V - 1000V High Efficient Surface Mount Rectifier part # HS3FB | Rectifier | DEX

Taiwan Semiconductor Manufacturing, part # HS3FB has these features: ● Low power loss, high efficiency ● Low forward voltage drop ● Low profile package ● Fast switching for high efficiency ● Ideal for automated placement ● Glass passivated chip junction ● Moisture sensitivity level: level 1, per J-STD-020 ● RoHS Compliant ● Halogen-free according to IEC 61249-2-21

Applications

● Switching mode power supply (SMPS) ● Adapters ● Monitor ● TV

Mechanical Data

● Case: DO-214AA (SMB) ● Molding compound meets UL 94V-0 flammability rating ● Terminal: Matte tin plated leads, solderable per J-STD-002 ● Meet JESD 201 class 2 whisker test ● Polarity: Indicated by cathode band ● Weight: 0.093g (approximately)

TSM:HS3FB

HS3FB
