Taiwan Semiconductor Manufacturing, 3A, 50V - 600V Ultra Fast Surface Mount Rectifier part # MUR310S | Rectifier | DEX

Taiwan Semiconductor Manufacturing, part # MUR310S has these features: ● Glass passivated chip junction ● Ideal for automated placement ● Ultra Fast recovery time for high efficiency ● Moisture sensitivity level: level 1, per J-STD-020 ● RoHS Compliant ● Halogen-free according to IEC 61249-2-21

Applications

● High frequency rectification ● Freewheeling application ● Switching mode converters and inverters in computer, and telecommunication

Mechanical Data

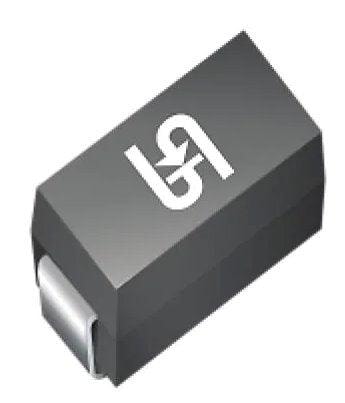

● Case: DO-214AB (SMC) ● Molding compound meets UL 94V-0 flammability rating ● Terminal: Matte tin plated leads, solderable per J-STD-002 ● Meet JESD 201 class 2 whisker test ● Polarity: Indicated by cathode band ● Weight: 0.210g (approximately)

TSM:MUR310S

MUR310S
