Taiwan Semiconductor Manufacturing, 4A, 100V - 200V Ultra Fast Surface Mount Rectifier part # PUUP4DH | Rectifier | DEX

Taiwan Semiconductor Manufacturing, part # PUUP4DH has these features: ● AEC-Q101 qualified ● Planar technology ● Low power loss, high efficiency ● Ideal for automated placement ● Wettable flank ● Moisture sensitivity level: level 1, per J-STD-020 ● RoHS Compliant ● Halogen-free according to IEC 61249-2-21

Applications

● High frequency switching ● DC/DC ● Snubber

Mechanical Data

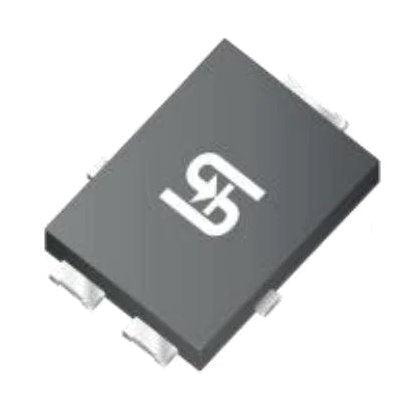

● Case: TO-277A (SMPC4.6U) ● Molding compound meets UL 94V-0 flammability rating ● Terminal: Matte tin plated leads, solderable per J-STD-002 ● Meet JESD 201 class 2 whisker test ● Polarity: Indicated by cathode band ● Weight: 0.103g (approximately)

TSM:PUUP4DH

PUUP4DH
