TAIWAN SEMICONDUCTOR

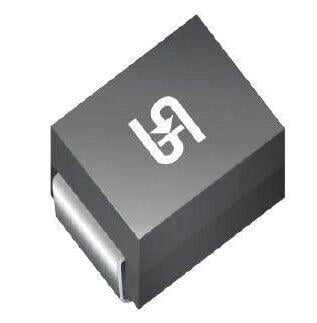

Taiwan Semiconductor Manufacturing, 10A, 400V - 1000V Surface Mount Glass Passivated Rectifier part # S10GCHR7G | Rectifier | DEX

Taiwan Semiconductor Manufacturing, 10A, 400V - 1000V Surface Mount Glass Passivated Rectifier part # S10GCHR7G | Rectifier | DEX

Regular price $0.32 USD
Regular price $0.32 USD Sale price $0.32 USD
Sale Sold out
Shipping calculated at checkout.

Taiwan Semiconductor Manufacturing, part # S10GCHR7G has these features: ● Low forward voltage drop ● Ideal for automated placement ● High surge current capability ● Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC ● Halogen-free according to IEC 61249-2-21



Applications

● Switching mode power supply (SMPS) ● Adapters ● Lighting application ● Converter



Mechanical Data

● Case: DO-214AB (SMC) ● Molding compound meets UL 94V-0 flammability rating ● Part no. with suffix "H" means AEC-Q101 qualified ● Packing code with suffix "G" means green compound (halogen-free) ● Moisture sensitivity level: level 1, per J-STD-020 ● Terminal: Matte tin plated leads, solderable per J-STD-002 ● Meet JESD 201 class 2 whisker test ● Polarity: As marked ● Weight: 0.27 g (approximately)



TSM:S10GCHR7G

S10GCHR7G
