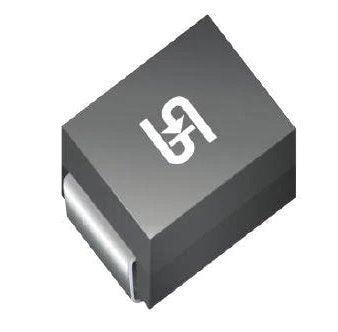

Taiwan Semiconductor Manufacturing, 15A, 400V - 1000V Surface Mount Glass Passivated Rectifiers part # S15JCHR7G | Rectifier | DEX
Taiwan Semiconductor Manufacturing, 15A, 400V - 1000V Surface Mount Glass Passivated Rectifiers part # S15JCHR7G | Rectifier | DEX
Couldn't load pickup availability
Taiwan Semiconductor Manufacturing, part # S15JCHR7G has these features: - Low forward voltage drop - Ideal for automated placement - High surge current capability - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21
Mechanical Data
Case: DO-214AB (SMC) Molding compound: UL flammability classification rating 94V-0 Moisture sensitivity level (MSL): level 1, per J-STD-020 Part no. with suffix "H" means AEC-Q101 qualified Packing code with suffix "G" means green compound (halogen-free) Terminal: Matte tin plated leads, solderable per JESD22-B102 Meet JESD 201 class 2 whisker test Polarity: Indicated by cathode band Weight: 0.27 g (approximately)
TSM:S15JCHR7G
S15JCHR7G
