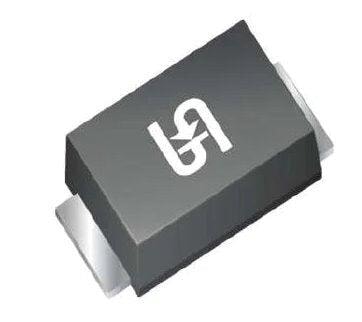

Taiwan Semiconductor Manufacturing, 1A, 50V - 1000V Surface Mount Rectifier part # S1AL | Rectifier | DEX

Taiwan Semiconductor Manufacturing, part # S1AL has these features: - Glass passivated junction chip - Ideal for automated placement - Low-Profile Package - Low power loss, high efficiency - Moisture sensitivity level: level 1, per J-STD-020 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition

Mechanical Data

Case: Sub SMA Molding compound, UL flammability classification rating 94V-0 Part No. with suffix "H" means AEC-Q101 qualified Packing code with suffix "G" means green compound (halogen-free) Terminal: Matte tin plated leads, solderable per JESD22-B102 Meet JESD 201 class 2 whisker test Polarity: Indicated by cathode band Weight: 0.019 g (approximately)

TSM:S1AL

S1AL
