Taiwan Semiconductor Manufacturing, 1A, 200V - 1000V Standard Surface Mount Rectifier part # S1G-T | Rectifier | DEX

Taiwan Semiconductor Manufacturing, part # S1G-T has these features: ● Glass passivated chip junction ● Ideal for automated placement ● Low forward voltage drop ● High surge current capability ● Moisture sensitivity level: level 1, per J-STD-020 ● RoHS Compliant ● Halogen-free according to IEC 61249-2-21

Applications

● DC to DC converter ● Switching mode converters and inverters ● General purpose

Mechanical Data

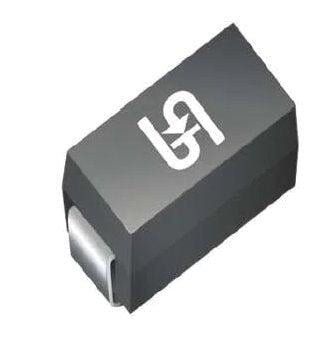

● Case: DO-214AC (SMA) ● Molding compound meets UL 94V-0 flammability rating ● Terminal: Matte tin plated leads, solderable per J-STD-002 ● Meet JESD 201 class 1A whisker test ● Polarity: Indicated by cathode band ● Weight: 0.060g (approximately)

TSM:S1G-T

S1G-T
