Taiwan Semiconductor Manufacturing, 3A, 50V - 1000V Surface Mount Rectifier part # S3A R6 | Rectifier | DEX
Taiwan Semiconductor Manufacturing, 3A, 50V - 1000V Surface Mount Rectifier part # S3A R6 | Rectifier | DEX
Taiwan Semiconductor Manufacturing, part # S3A R6 has these features: ● Glass passivated chip junction ● Ideal for automated placement ● Low forward voltage drop ● High current capability ● High surge current capability ● Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC ● Halogen-free according to IEC 61249-2-21
Applications
● Switching mode power supply (SMPS) ● Adapters ● Lighting application ● Converter
Mechanical Data

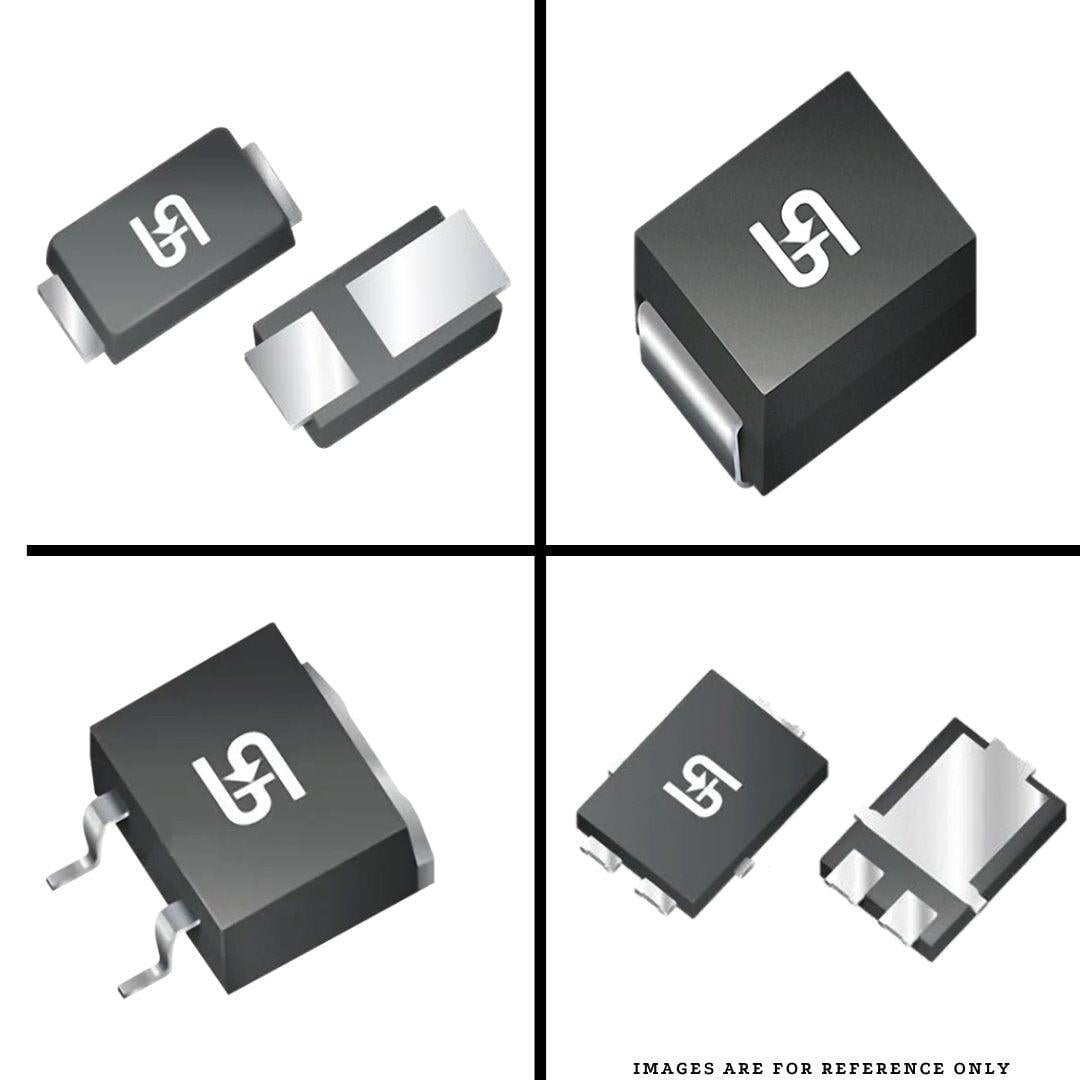

● Case: DO-214AB (SMC) ● Molding compound meets UL 94V-0 flammability rating ● Part no. with suffix "H" means AEC-Q101 qualified ● Packing code with suffix "G" means green compound (halogen-free) ● Moisture sensitivity level: level 1, per J-STD-020 ● Terminal: Matte tin plated leads, solderable per J-STD-002 ● Meet JESD 201 class 2 whisker test ● Polarity: As marked ● Weight: 0.21 g (approximately)
TSM:S3A R6
S3A R6
