TAIWAN SEMICONDUCTOR

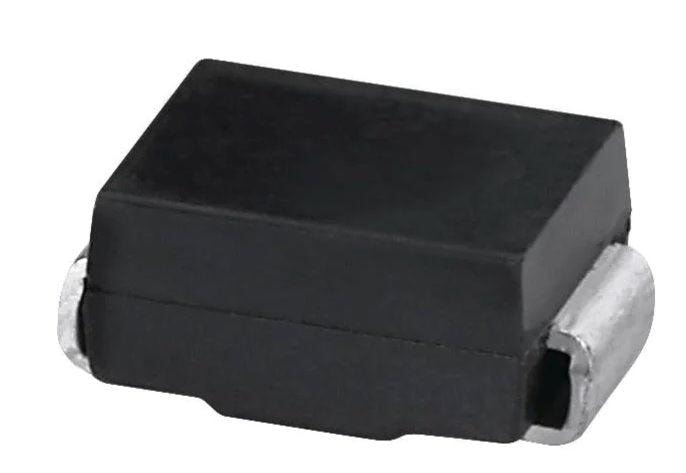

Taiwan Semiconductor Manufacturing, Surface Mount Rectifiers part # S3MB R5 | Rectifier | DEX

Taiwan Semiconductor Manufacturing, Surface Mount Rectifiers part # S3MB R5 | Rectifier | DEX

Regular price $0.42 USD
Regular price $0.42 USD Sale price $0.42 USD
Sale Sold out
Shipping calculated at checkout.

Taiwan Semiconductor Manufacturing, part # S3MB R5 has these features: - Glass passivated chip junction - Ideal for automated placement - Low forward voltage drop - High surge current capability Moisture sensitivity level: level 1, per J-STD-020 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition



Mechanical Data

Case: DO-214AA (SMB) Molding compound, UL flammability classification rating 94V-0 Base P/N with suffix "G" on packing code - green compound (halogen-free) Base P/N with prefix "H" on packing code - AEC-Q101 qualified Terminal: Matte tin plated leads, solderable per JESD22-B102 Meet JESD 201 class 1A whisker test  with prefix "H" on packing code meet JESD 201 class 2 whisker test Polarity: Indicated by cathode band Weight: 0.09 g (approximately)



TSM:S3MB R5

S3MB R5
