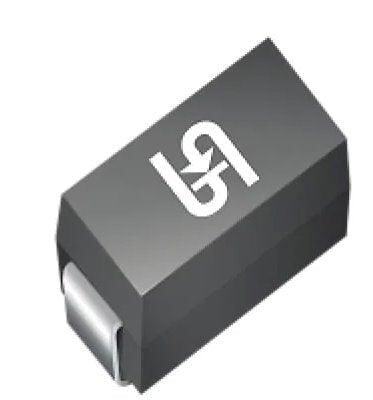

Taiwan Semiconductor Manufacturing, 4A, 50V - 1000V Surface Mount Rectifier part # S4B | Rectifier | DEX

Taiwan Semiconductor Manufacturing, part # S4B has these features: ● Glass passivated chip junction ● Ideal for automated placement ● Low forward voltage drop ● High current capability ● High surge current capability ● Moisture sensitivity level: level 1, per J-STD-020 ● RoHS Compliant ● Halogen-free according to IEC 61249-2-21

Applications

● Switching mode power supply (SMPS) ● Adapters ● Lighting application ● Converter

Mechanical Data

● Case: DO-214AB (SMC) ● Molding compound meets UL 94V-0 flammability rating ● Terminal: Matte tin plated leads, solderable per J-STD-002 ● Meet JESD 201 class 2 whisker test ● Polarity: Indicated by cathode band ● Weight: 0.210g (approximately)

TSM:S4B

S4B
