Taiwan Semiconductor Manufacturing

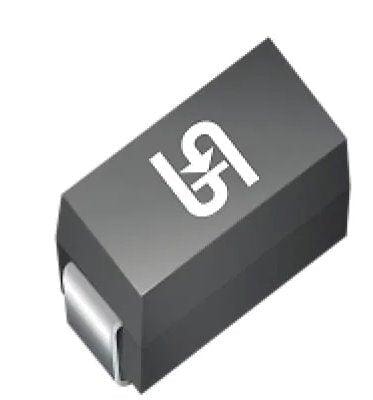

Taiwan Semiconductor Manufacturing, 4A, 50V - 1000V Surface Mount Rectifier part # S4K | Rectifier | DEX

Taiwan Semiconductor Manufacturing, 4A, 50V - 1000V Surface Mount Rectifier part # S4K | Rectifier | DEX

Regular price $0.61 USD
Regular price $0.61 USD Sale price $0.61 USD
Sale Sold out
Shipping calculated at checkout.

Taiwan Semiconductor Manufacturing, part # S4K has these features: ● Glass passivated chip junction ● Ideal for automated placement ● Low forward voltage drop ● High current capability ● High surge current capability ● Moisture sensitivity level: level 1, per J-STD-020 ● RoHS Compliant ● Halogen-free according to IEC 61249-2-21



Applications

● Switching mode power supply (SMPS) ● Adapters ● Lighting application ● Converter



Mechanical Data

● Case: DO-214AB (SMC) ● Molding compound meets UL 94V-0 flammability rating ● Terminal: Matte tin plated leads, solderable per J-STD-002 ● Meet JESD 201 class 2 whisker test ● Polarity: Indicated by cathode band ● Weight: 0.210g (approximately)



TSM:S4K

S4K
