Taiwan Semiconductor Manufacturing, 5A, 50V - 1000V Surface Mount Rectifiers part # S5B R7G | Rectifier | DEX

Taiwan Semiconductor Manufacturing, part # S5B R7G has these features: - Glass passivated chip junction - Ideal for automated placement - Low forward voltage drop - High current capability - High surge current capability - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition - AEC-Q101 qualified

Mechanical Data

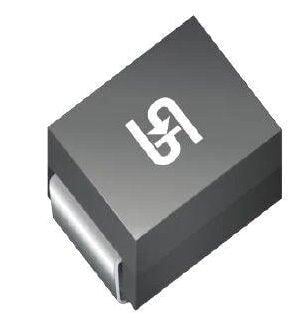

Case: DO-214AB (SMC) Molding compound, UL flammability classification rating 94V-0 Moisture sensitivity level: level 1, per J-STD-020 Packing code with suffix "G" means green compound (halogen-free) Terminal: Matte tin plated leads, solderable per JESD22-B102 Meet JESD 201 class 2 whisker test Polarity: Indicated by cathode band Weight: 0.21 g (approximately)

TSM:S5B R7G

S5B R7G
