Taiwan Semiconductor Manufacturing, Surface Mount Glass Passivated Rectifier part # S8KC R6G | Rectifier | DEX

Taiwan Semiconductor Manufacturing, part # S8KC R6G has these features: - Low forward voltage drop - Ideal for automated placement - High surge current capability - Moisture sensitivity: level 1, per J-STD-020 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition

Mechanical Data

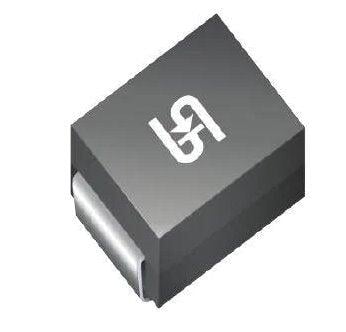

Case: DO-214AB (SMC) Molding compound, UL flammability classification rating 94V-0 Base P/N with suffix "G" on packing code - halogen-free Terminal: Matte tin plated leads, solderable per JESD22-B102 Meet JESD 201 class 1A whisker test Polarity: Indicated by cathode band Weight: 0.27 g (approximately)

TSM:S8KC R6G

S8KC R6G
