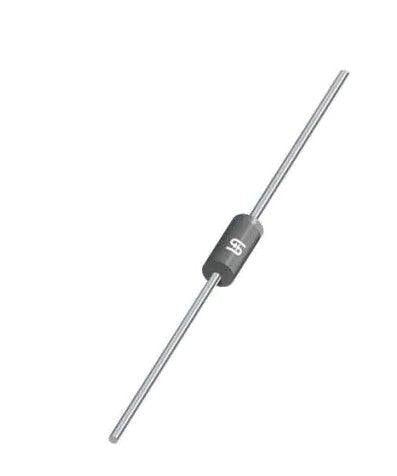

Taiwan Semiconductor Manufacturing, part # SF38G A0G has these features: - Glass passivated chip junction - High current capability, Low VF - High reliability - High surge current capability - Low power loss - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition
Mechanical Data
Case: DO-201AD Molding compound, UL flammability classification rating 94V-0 Base P/N with suffix "G" on packing code - green compound (halogen-free) Base P/N with prefix "H" on packing code - AEC-Q101 qualified Terminal: Matte tin plated leads, solderable per JESD22-B102 Meet JESD 201 class 1A whisker test with prefix "H" on packing code meet JESD 201 class 2 whisker test Weight: 1.1 g (approximately)
