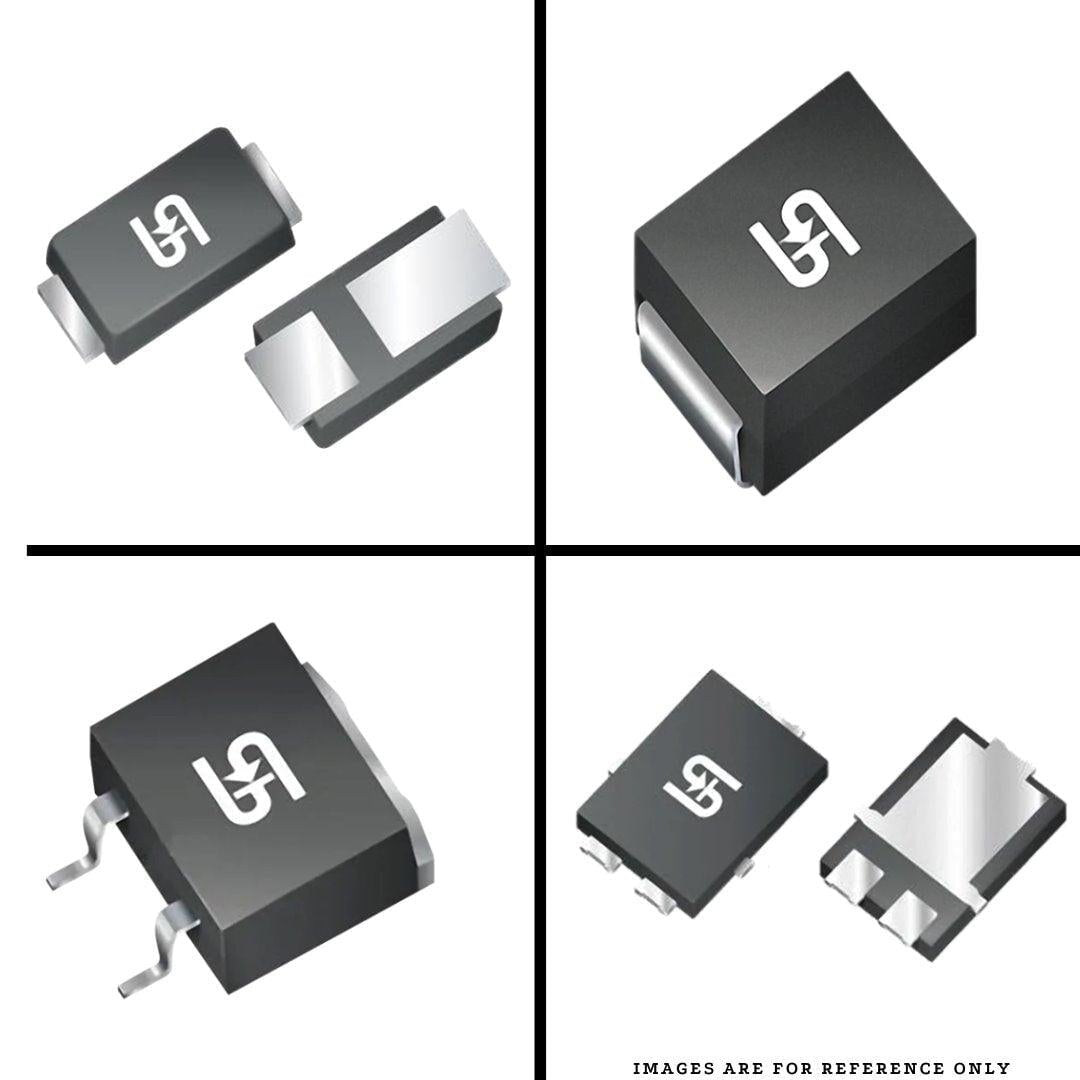

Taiwan Semiconductor Manufacturing, High Efficient Surface Mount Rectifiers part # US1B F3 | Rectifier | DEX

Taiwan Semiconductor Manufacturing, part # US1B F3 has these features: - Glass passivated chip junction - Ideal for automated placement - Low forward voltage drop - Ultrafast recovery time for high efficiency - Built-in strain relief - Moisture sensitivity level: level 1, per J-STD-020 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition

Mechanical Data

Case: DO-214AC (SMA) Molding compound, UL flammability classification rating 94V-0 Base P/N with suffix "G" on packing code - Green compound (halogen-free) Base P/N with prefix "H" on packing code - AEC-Q101 qualified Terminal: Matte tin plated leads, solderable per JESD22-B102 Meet JESD 201 class 1A whisker test with prefix "H" on packing code meet JESD 201 class 2 whisker test Polarity: Indicated by cathode band Weight: 0.06 g (approximately)

TSM:US1B F3

US1B F3
