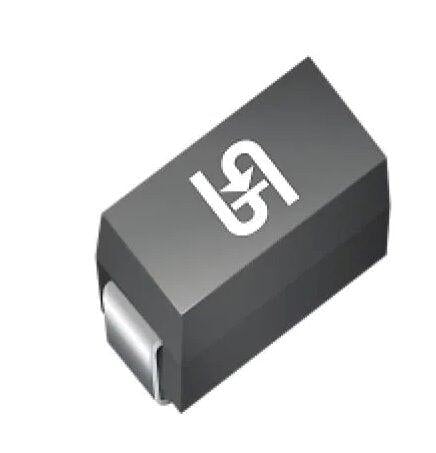

Taiwan Semiconductor Manufacturing, 1A, 50V - 1000V High Efficient Surface Mount Rectifiers part # US1J R3 | Rectifier | DEX
Taiwan Semiconductor Manufacturing, 1A, 50V - 1000V High Efficient Surface Mount Rectifiers part # US1J R3 | Rectifier | DEX
Couldn't load pickup availability
Taiwan Semiconductor Manufacturing, part # US1J R3 has these features: - Glass passivated chip junction - Ideal for automated placement - Low forward voltage drop - Ultrafast recovery time for high efficiency - Built-in strain relief - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition
Mechanical Data
Case: DO-214AC (SMA) Molding compound, UL flammability classification rating 94V-0 Moisture sensitivity level: level 1, per J-STD-020 Part No. with suffix "H" means AEC-Q101 qualified Packing code with suffix "G" means green compound (halogen-free) Terminal: Matte tin plated leads, solderable per JESD22-B102 Meet JESD 201 class 2 whisker test Polarity: Indicated by cathode band Weight: 0.06 g (approximately)
TSM:US1J R3
US1J R3
