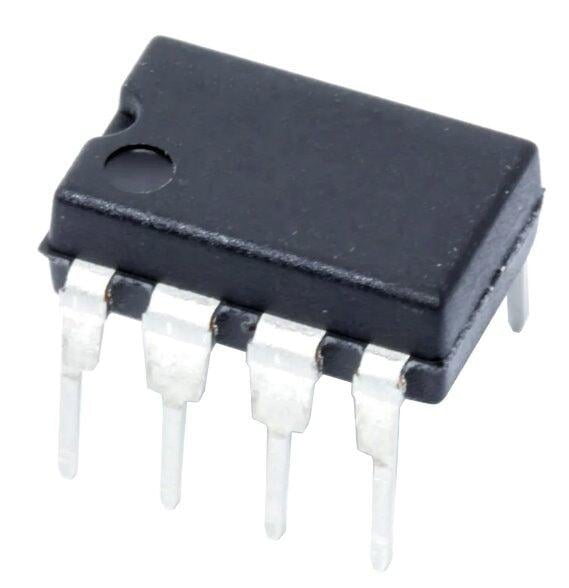

Texas Instruments LMx93-N, LM2903-N Low-Power, Low-Offset Voltage, Dual Comparator, Part #LM393N/NOPB | Comparator | DEX

Texas Instruments LMx93-N, LM2903-N Low-Power, Low-Offset Voltage, Dual Comparator, Part #LM393N/NOPB | Comparator | DEX features: 1• Wide Supply – Voltage Range: 2.0 V to 36 V – Single or Dual Supplies: ±1.0 V to ±18 V • Very Low Supply Current Drain (0.4 mA) — Independent of Supply Voltage • Low Input Biasing Current: 25 nA • Low Input Offset Current: ±5 nA • Maximum Offset voltage: ±3 mV • Input Common-Mode Voltage Range Includes Ground • Differential Input Voltage Range Equal to the Power Supply Voltage • Low Output Saturation Voltage: 250 mV at 4 mA • Output Voltage Compatible with TTL, DTL, ECL, MOS and CMOS logic systems • Available in the 8-Bump (12 mil) DSBGA Package • Advantages – High Precision Comparators – Reduced VOS Drift Over Temperature – Eliminates Need for Dual Supplies – Allows Sensing Near Ground – Compatible with All Forms of Logic – Power Drain Suitable for Battery Operation

Applications: • Battery Powered Applications • Industrial Applications

 TEX:LM393N/NOPB

LM393N/NOPB
