LINEAR TECHNOLOGY

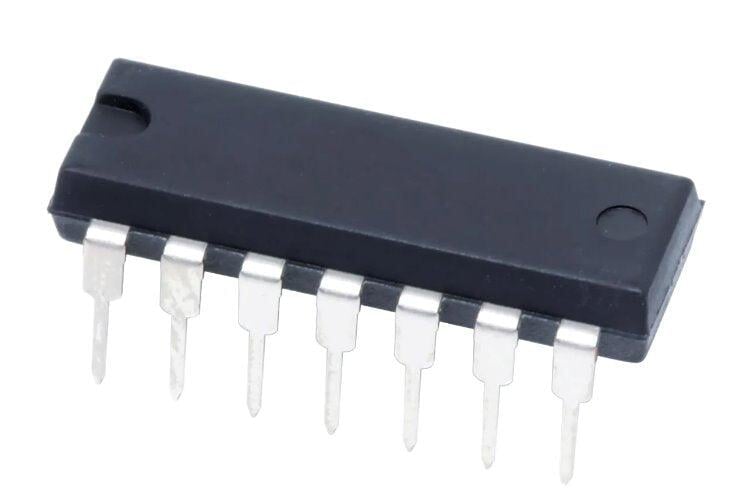

Texas Instruments QUAD PRECISION OPERATIONAL AMPLIFIER, Part #LT1014CN | Amplifier | DEX

Texas Instruments QUAD PRECISION OPERATIONAL AMPLIFIER, Part #LT1014CN | Amplifier | DEX

Regular price $28.00 USD
Regular price Sale price $28.00 USD
Sale Sold out
Shipping calculated at checkout.

Texas Instruments QUAD PRECISION OPERATIONAL AMPLIFIER, Part #LT1014CN | Amplifier | DEX features:  Single-Supply Operation: Input Voltage Range Extends to Ground, and Output Swings to Ground While Sinking Current Input Offset Voltage 300 µV Max at 25°C for LT1014 Offset Voltage Temperature Coefficient 2.5 µV/°C Max for LT1014 Input Offset Current 1.5 nA Max at 25°C for LT1014 High Gain 1.2 V/µV Min (RL = 2 kΩ), 0.5 V/µV Min (RL = 600 Ω) for LT1014 Low Supply Current 2.2 mA Max at 25°C for LT 1014 Low Peak-to-Peak Noise Voltage 0.55 µV Typ Low Current Noise 0.07 pA/√Hz Typ

The LT1014, LT1014A, and LT1014D are quad precision operational amplifiers with 14-pin industry-standard configuration. They feature low offset-voltage temperature coefficient, high gain, low supply current, and low noise. The LT1014, LT1014A, and LT1014D can be operated with both dual ±15-V and single 5-V power supplies. The common-mode input voltage range includes ground, and the output voltage can also swing to within a few milivolts of ground. Crossover distortion is eliminated. The LT1014C and LT1014D are characterized for operation from 0°C to 70°C. The LT1014I and LT1014DI are characterized for operation from −40°C to 105°C. The LT1014M, LT1014AM and LT1014DM are characterized for operation over the full military temperature range of −55°C to 125°C.



LNT:LT1014CN

LT1014CN
