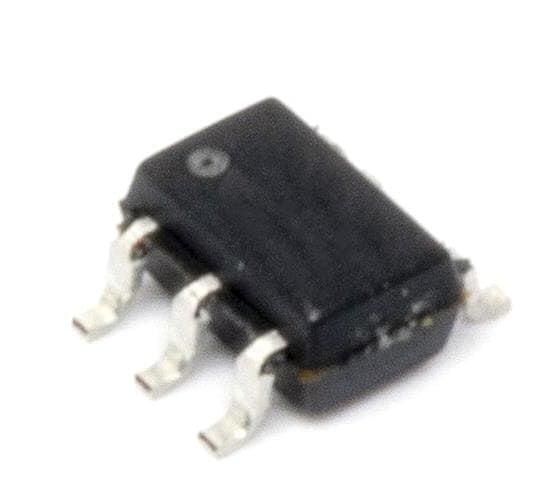

Texas Instruments SN74LV1T34 Single Power Supply Single Buffer, Part #SN74LV1T34DCKR | Shifter | DEX

Texas Instruments SN74LV1T34 Single Power Supply Single Buffer, Part #SN74LV1T34DCKR | Shifter | DEX features: • Latch-Up Performance Exceeds 250 mAPer JESD 17 • Single-supply voltage translator at 5-V, 3.3-V, 2.5- V, and 1.8-V VCC • Operating range of 1.65 V to 5.5 V • Up translation: – 1.2 V(1) to 1.8 V at 1.8-V VCC – 1.5 V(1) to 2.5 V at 2.5-V VCC – 1.8 V(1) to 3.3 V at 3.3-V VCC – 3.3 V to 5.0 V at 5.0-V VCC • Down translation: – 3.3 V to 1.8 V at 1.8-V VCC – 3.3 V to 2.5 V at 2.5-V VCC – 5.0 V to 3.3 V at 3.3-V VCC • Logic output is referenced to VCC • Output drive: – 8 mA output drive at 5 V – 7 mA output drive at 3.3 V – 3 mA output drive at 1.8 V • Characterized up to 50 MHz at 3.3-V VCC • 5V Tolerance on input pins • –40°C to 125°C operating temperature range • Supports standard logic pinouts • CMOS output B compatible with AUP1G and LVC1G families

The SN74LV1T34 is a single buffer gate with reduced input thresholds to support voltage translation applications.

TEX:SN74LV1T34DCKR

SN74LV1T34DCKR
