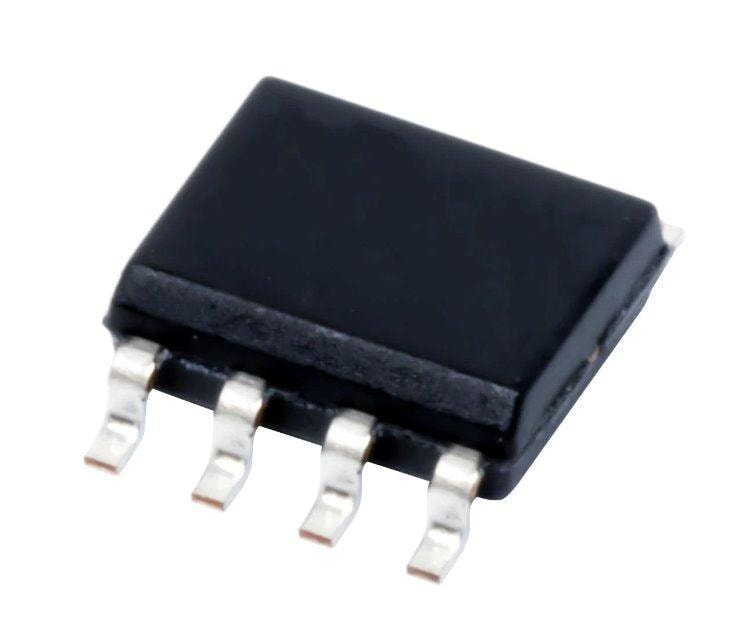

The LM3525 provides Universal Serial Bus standard power switch and over-current protection for all host port applications. The single port device is ideal for Notebook PC and Handheld PC applications that supply power to one port. A 1 ms delay on fault flag output prevents erroneous overcurrent reporting caused by inrush currents during the hot-plug events. The LM3525 accepts an input voltage between 2.7V and 5.5V allowing use as a device-based inrush current limiter for 3.3V USB peripherals, as well as Root and Self-Powered Hubs at 5.5V. The Enable input accepts both 3.3V and 5.0V logic thresholds. The small size, low RON, and 1 ms fault flag delay make the LM3525 a good choice for root hubs as well as ganged power control in space-critical self-powered hubs.

Features:

• Compatible with USB1.1 and USB 2.0
• 1 ms Fault Flag Delay During Hot-Plug Events
• Smooth Turn-On Eliminates Inrush Induced Voltage Drop
• UL Recognized Component: REF # 205202
• 1A Nominal Short Circuit Output Current Protects Notebook PC Power Supplies
• Thermal Shutdown Protects Device in Direct Short Condition
• 500mA Minimum Continuous Load Current
• Small SOIC-8 Package Minimizes Board Space
• 2.7V to 5.5V Input Voltage Range
• Switch Resistance ≤ 120 mΩ Max. at VIN = 5V
• 1µA Max Standby Current
• 100 µA Max Operating Current
• Undervoltage Lockout (UVLO)
