Texas Instruments

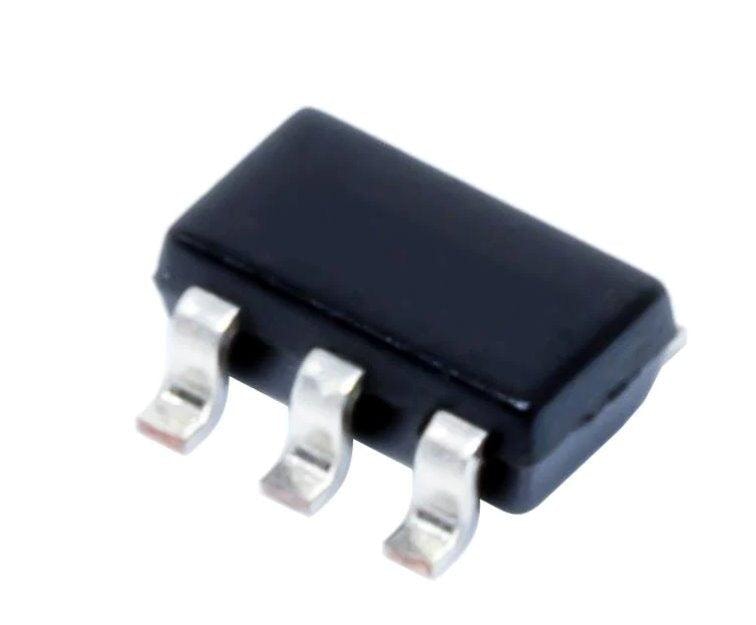

Texas Instruments Power Switch IC's Part #TPS2011D | Integrated Circuit | DEX

Texas Instruments Power Switch IC's Part #TPS2011D | Integrated Circuit | DEX

Regular price $3.94 USD
Regular price Sale price $3.94 USD
Sale Sold out
Shipping calculated at checkout.

The TPS201x family of power-distribution switches is intended for applications where heavy capacitive loads and short circuits are likely to be encountered. The high-side switch is a 95-mΩ N-channel MOSFET. Gate drive is provided by an internal driver and charge pump designed to control the power switch rise times and fall times to minimize current surges during switching. The charge pump operates at 100 kHz, requires no external components, and allows operation from supplies as low as 2.7 V. When the output load exceeds the current-limit threshold or a short circuit is present, the TPS201x limits the output current to a safe level by switching into a constant-current mode. Continuous heavy overloads and short circuits increase power dissipation in the switch and cause the junction temperature to rise. If the junction temperature reaches approximately 180°C, a thermal protection circuit shuts the switch off to prevent damage. Recovery from thermal shutdown is automatic once the device has cooled sufficiently. The members of the TPS201x family differ only in short-circuit current threshold. The TPS2010 is designed to limit at 0.4-A load; the other members of the family limit at 1.2 A, 2 A, and 2.6 A (see the available options table). The TPS201x family is available in 8-pin small-outline integrated circuit (SOIC) and 14-pin thin shink small-outline (TSSOP) packages and operates over a junction temperature range of –40°C to 125°C. Versions in the 8-pin SOIC package are drop-in replacements for Siliconix’s Littlefoot power PMOS switches, except that GND must be connected.



Features:

  • 95-mΩ Max (5.5-V Input) High-Side MOSFET Switch With Logic Compatible Enable Input
  • Short-Circuit and Thermal Protection
  • Typical Short-Circuit Current Limits:
  • 0.4 A, TPS2010; 1.2 A, TPS2011;
  • 2 A, TPS2012; 2.6 A, TPS2013
  • Electrostatic-Discharge Protection, 12-kV Output, 6-kV All Other Terminals
  • Controlled Rise and Fall Times to Limit Current Surges and Minimize EMI
  • SOIC-8 Package Pin Compatible With the Popular Littlefoot Series When GND Is Connected
  • 2.7-V to 5.5-V Operating Range
  • 10-µA Maximum Standby Current
  • Surface-Mount SOIC-8 and TSSOP-14 Packages
  • –40°C to 125°C Operating Junction Temperature Range



TEX:TPS2011D

TPS2011D
