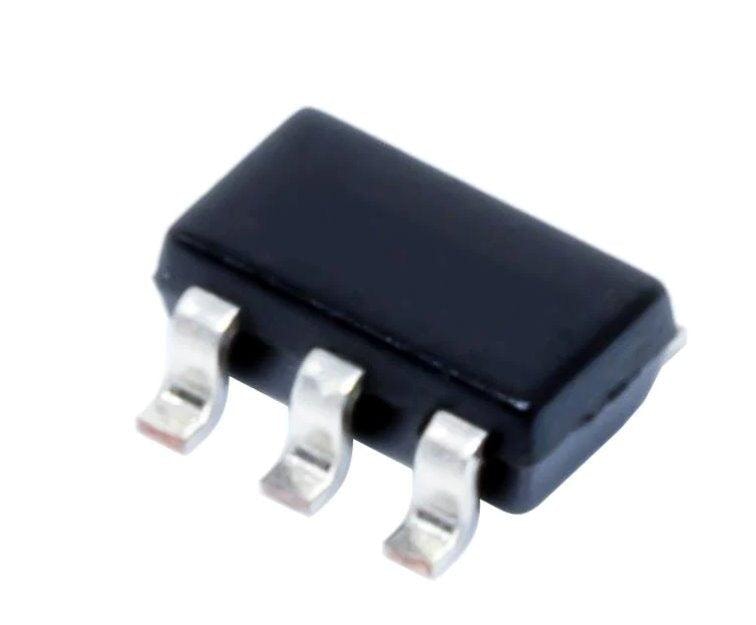

Texas Instruments Power Switch IC's Part #TPS2012AD | Integrated Circuit | DEX

Texas Instruments Power Switch IC's Part #TPS2012AD | Integrated Circuit | DEX

Regular price $3.09 USD
Regular price Sale price $3.09 USD
Sale Sold out
Shipping calculated at checkout.

The TPS201xA family of power distribution switches is intended for applications where heavy capacitive loads and short circuits are likely to be encountered. The switch is controlled by a logic enable compatible with 5-V logic and 3-V logics. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7 V. When the output load exceeds the current-limit threshold or a short is present, the TPS201xA limits the output current to a safe level by switching into a constant-current mode. When continuous heavy overloads and short circuits increase the power dissipation in the switch, causing the junction temperature or rise, a thermal protection circuit shuts off the switch to prevent damage. Recovery from a thermal shutdown is automatic once the device has cooled sufficiently. Internal circuitry ensures the switch remains off until valid input voltage is present.



Features:

  • Highside MOSFET Switch
  • Short-circuit and Thermal Protection
  • Operating Range 2.7V to 5.5V
  • Logic-Level Enable Input
  • Typical Rise Time 6.1ms
  • Undervoltage Lockout
  • Maximum Standby Supply Current
  • No Drain-Source Back-Gate Diode
  • Available in 8-pin SOIC and 14-pin TSSOP Packages
  • Ambient Temperature Range, -40C to 85C
  • 2-kV Human-Body-Model, 200-V Machine-Model ESD Protection



TEX:TPS2012AD

TPS2012AD
