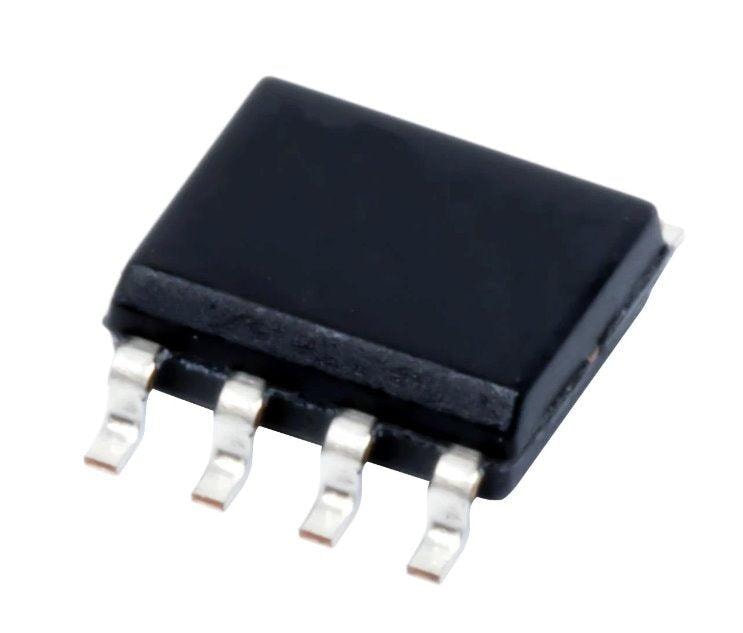

Texas Instruments Power Switch IC's Part #TPS2024DRG4 | Integrated Circuit | DEX

Texas Instruments Power Switch IC's Part #TPS2024DRG4 | Integrated Circuit | DEX

Regular price $2.37 USD
Regular price Sale price $2.37 USD
Sale Sold out
Shipping calculated at checkout.

The TPS202x family of power distribution switches is intended for applications where heavy capacitive loads and short circuits are likely to be encountered. These devices are 50-mΩ N-channel MOSFET high-side power switches. The switch is controlled by a logic enable compatible with 5-V logic and 3-V logic. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7 V. When the output load exceeds the current-limit threshold or a short is present, the TPS202x limits the output current to a safe level by switching into a constant-current mode, pulling the overcurrent (OC) logic output low. When continuous heavy overloads and short circuits increase the power dissipation in the switch, causing the junction temperature to rise, a thermal protection circuit shuts off the switch to prevent damage. Recovery from a thermal shutdown is automatic once the device has cooled sufficiently. Internal circuitry ensures the switch remains off until valid input voltage is present. The TPS202x devices differ only in short-circuit current threshold. The TPS2020 limits at 0.3-A load, the TPS2021 at 0.9-A load, the TPS2022 at 1.5-A load, and the TPS2024 at 3-A load. The TPS202x is available in an 8-pin small-outline integrated-circuit (SOIC) package and operates over a junction temperature range of –40°C to 125°C.


Features:

  • Qualified for Automotive Applications
  • Ambient Temperature Range:
  • 40°C to 85°C
  • 33-mΩ (5-V Input) High-Side MOSFET Switch
  • ESD Protection: 2-kV Human-Body Model, 200-V Machine Model
  • Short-Circuit and Thermal Protection
  • Overcurrent Logic Output
  • UL Listed - File No. E169910
  • Operating Range: 2.7 V to 5.5 V
  • Logic-Level Enable Input
  • Typical Rise Time: 6.1 ms
  • Undervoltage Lockout
  • Maximum Standby Supply Current:
  • 10 mA • No Drain-Source Back-Gate Diode
  • Available in 8-Pin SOIC Package


TEX:TPS2024DRG4

TPS2024DRG4
