TEXAS INSTRUMENTS

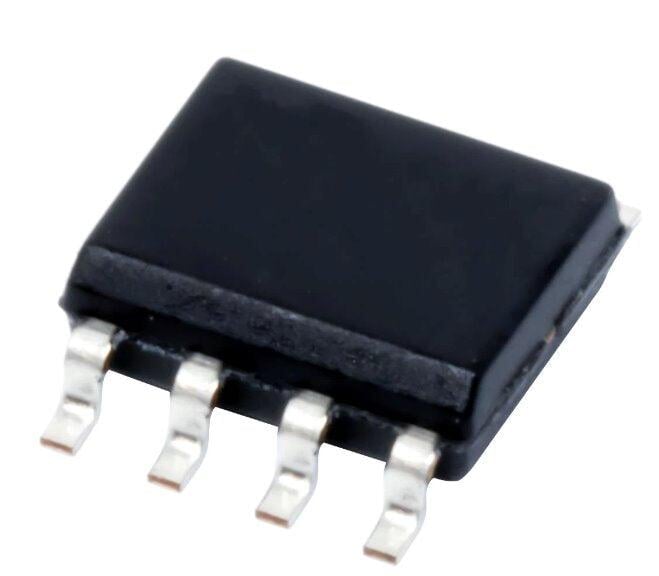

Texas InstrumentsPower Switch Ics - power distribution, Part #: TPS2061DR | Integrated Circuit | DEX

Texas InstrumentsPower Switch Ics - power distribution, Part #: TPS2061DR | Integrated Circuit | DEX

Regular price $1.72 USD
Regular price Sale price $1.72 USD
Sale Sold out
Shipping calculated at checkout.

Texas InstrumentsPower Switch Ics - power distribution, Part #: TPS2061DR features: • 70-mΩ High-Side MOSFET • 1-A Continuous Current • Thermal and Short-Circuit Protection • Accurate Current Limit (1.1 A min, 1.9 A max) • Operating Range: 2.7 V to 5.5 V • 0.6-ms Typical Rise Time • Undervoltage Lockout • Deglitched Fault Report (OC) • No OC Glitch During Power Up • 1-μA Maximum Standby Supply Current • Bidirectional Switch • Ambient Temperature Range: -40°C to 85°C • Built-in Soft-Start • UL Listed - File No. E169910

Applications: • Heavy Capacitive Loads • Short-Circuit Protections

The TPS206x power-distribution switches are intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. This device incorporates 70-mΩ N-channel MOSFET power switches for power-distribution systems that require multiple power switches in a single package. Each switch is controlled by a logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7 V.



TEX:TPS2061DR

TPS2061DR
