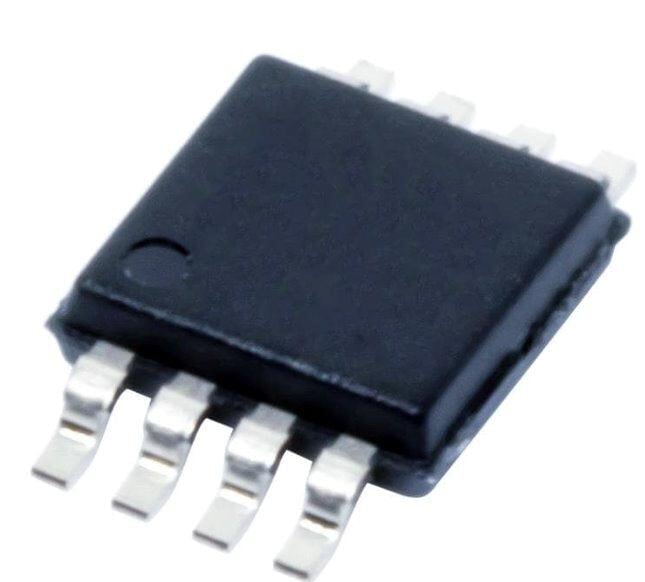

Texas InstrumentsPower Switch Ics - power distribution, Part #: TPS2068CDGN | Integrated Circuit | DEX

Texas InstrumentsPower Switch Ics - power distribution, Part #: TPS2068CDGN features: • Single Power Switch Family • Pin-for-Pin With Existing TI Switch Portfolio • Rated Currents of 0.5 A, 1 A, 1.5 A, 2 A • ±20% Accurate, Fixed, Constant Current Limit • Fast Overcurrent Response: 2 µs • Deglitched Fault Reporting • Selected Parts With (TPS20xxC) and Without (TPS20xxC-2) Output Discharge • Reverse Current Blocking • Built-In Soft Start • Ambient Temperature Range: –40°C to 85°C • UL Listed and CB-File No. E169910

Applications: • USB Ports and Hubs, Laptops, and Desktops • High-Definition Digital TVs • Set-Top Boxes • Short-Circuit Protection

The TPS20xxC and TPS20xxC-2 power-distribution switch family is intended for applications, such as USB, where heavy capacitive loads and short circuits are likely to be encountered. This family offers multiple devices with fixed current-limit thresholds for applications from 0.5 A to 2 A. The TPS20xxC and TPS20xxC-2 family limits the output current to a safe level by operating in a constant-current mode when the output load exceeds the current limit threshold. This provides a predictable fault current under all conditions. The fast overload response time eases the burden on the main 5-V supply to provide regulated power when the output is shorted. The power-switch rise and fall times are controlled to minimize current surges during turnon and turnoff.

TEX:TPS2068CDGN

TPS2068CDGN
