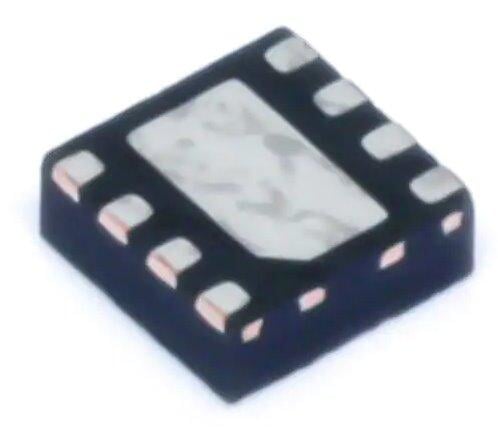

Texas InstrumentsPower Switch Ics - power distribution, Part #: TPS22965NTDSGRQ1 | Integrated Circuit | DEX

Texas InstrumentsPower Switch Ics - power distribution, Part #: TPS22965NTDSGRQ1 features: • Qualified for automotive applications – AEC-Q100 qualified – Device temperature grade 2: –40°C to +105°C (TPS22965-Q1, TPS22965N-Q1) – Device temperature grade 1: –40°C to +125°C (TPS22965W-Q1, TPS22965NW-Q1) – Device HBM ESD classification level 3A – Device CDM ESD classification level C6 • Functional Safety-Capable – Documentation available to aid functional safety system design • Integrated single channel load switch • Input voltage range: 0.8 V to 5.5 V • Ultra-low on resistance (RON) – RON = 16 mΩ at VIN = 5 V (VBIAS = 5 V) – RON = 16 mΩ at VIN = 3.6 V (VBIAS = 5 V) – RON = 16 mΩ at VIN = 1.8 V (VBIAS = 5 V) • 4-A maximum continuous switch current • Low quiescent current (50 µA) • Low control input threshold enables use of 1.2-, 1.8-, 2.5- and 3.3-V logic • Configurable rise time • Quick Output Discharge (QOD) (TPS22965-Q1 and TPS22965W-Q1 only) • WSON 8-pin package with thermal pad

Applications: • Automotive electronics • Infotainment • ADAS (Advanced Driver Assistance Systems)

The TPS22965x-Q1 is a small, ultra-low-RON, singlechannel load switch with controlled turn-on. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.8 V to 5.5 V and can support a maximum continuous current of 4 A. The VOUT rise time is configurable so that inrush current can be reduced. The TPS22965-Q1 and TPS22965W-Q1 devices include a 225-Ω on-chip load resistor for quick output discharge when the switch is turned off. The TPS22965x-Q1 devices are available in a small, space-saving 2-mm × 2-mm 8-pin WSON package (DSG0008A) with integrated thermal pad allowing for high power dissipation. The TPS22965- Q1 and TPS22965N-Q1 devices are characterized for operation over the free-air temperature range of –40°C to 105°C. Furthermore, the TPS22965WQ1 and TPS22965NW-Q1 devices feature wettable flanks in the same WSON package (DSG0008B) and it is characterized for operation over the free-air temperature range of –40°C to +125°C.

TEX:TPS22965NTDSGRQ1

TPS22965NTDSGRQ1
