TEXAS INSTRUMENTS

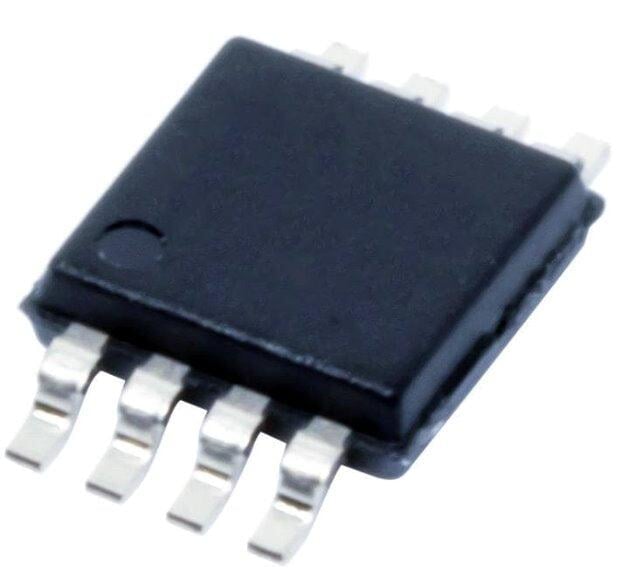

Texas Instruments Power Switch Ics - power distribution, Part #: TPS2511DGN | Integrated Circuit | DEX

Texas Instruments Power Switch Ics - power distribution, Part #: TPS2511DGN | Integrated Circuit | DEX

Regular price $1.84 USD
Regular price Sale price $1.84 USD
Sale Sold out
Shipping calculated at checkout.

Texas Instruments Power Switch Ics - power distribution, Part #: TPS2511DGN is a USB-dedicated charging port (DCP) controller and current-limiting power switch. An auto-detect feature monitors USB data line voltage, and automatically provides the correct electrical signatures on the data lines to charge compliant devices among the following dedicated charging schemes: 1. Divider DCP, required to apply 2.7 V and 2 V on the D+ and D– lines respectively or 2 V and 2.7 V on the D+ and D– lines respectively 2. BC1.2 DCP, required to short the D+ line to the D– line 3. 1.2 V on both D+ and D– lines The TPS2511 is a 70-mΩ power-distribution switch intended for applications where heavy capacitive loads and short circuits are likely to be encountered. This device also provides hiccup mode when the output (OUT) voltage is less than 3.8 V (typical) or when an overtemperature protection occurs during an overload condition. Accurate and programmable current limit provides flexibility and convenience for applications. The TPS2511 provides a CS pin for USB cable resistance compensation and an EN pin to control the device turnon and turnoff.

Features: • Supports a USB DCP Shorting D+ Line to D– Line • Supports a USB DCP Applying 2 V on D+ Line and 2.7 V on D– Line (or a USB DCP Applying 2.7 V on D+ Line and 2 V on D– Line) • Supports a USB DCP Applying 1.2 V on D+ and D– Lines • Automatically Switch D+ and D– Lines Connections for an Attached Device • Hiccup Mode for Output Short-Circuit Protection • Provides CS Pin for USB Cable Compensation • Programmable Current Limit (ILIM_SET Pin) • Accurate ±10% Current Limit at 2.3 A (Typical) • 70-mΩ (Typical) High-Side MOSFET • Compatible With USB 2.0 and 3.0 Power Switch Requirements • Operating Range: 4.5 V to 5.5 V • Available in 8-Pin MSOP-PowerPAD™ Package

Applications: • Vehicle USB Power Chargers • AC-DC Wall Adapter With USB Ports • Other USB Chargers



TEX:TPS2511DGN

TPS2511DGN
