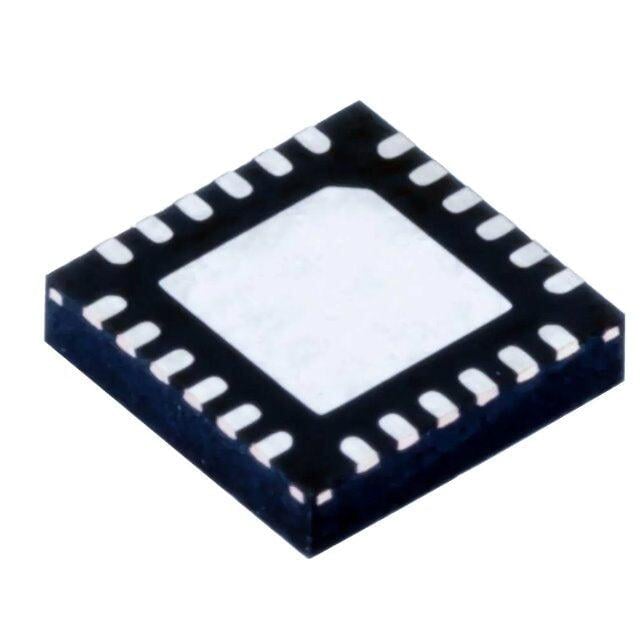

TPS2663x 60-V, 6-A Power Limiting, Surge Protection Industrial eFuse part #: TPS26630RGER

Features

• 4.5-V to 60-V operating voltage, 67-V absolute maximum

• Integrated 60-V, 31-mΩ RON hot-swap FET

• Reverse polarity protection and reverse current blocking support with an external N-channel FET

• 0.6-A to 6-A adjustable current limit (± 7%)

• Electrical fast transients (IEC61000-4-4) immunity and load protection during surge (IEC 61000-4-5) with Class-A system performance

• Fast reverse current blocking (0.17 µs)

• Variants with adjustable output power limiting (± 6%)

• Adjustable UVLO, OVP Cut Off, output slew rate control for inrush current limiting

• Charges large and unknown capacitive loads through thermal regulation during device power up

• Variants with 35-V and 39-V maximum over voltage clamp

• Power Good Output (PGOOD)

• Selectable over current fault response options between auto-retry and latch off (MODE)

• Variants with 2x pulse over current support

• Analog current monitor (IMON) output (± 6%)

• UL 2367 recognized – File No. E169910 – RILIM ≥ 3 kΩ

• IEC 62368-1 certified
