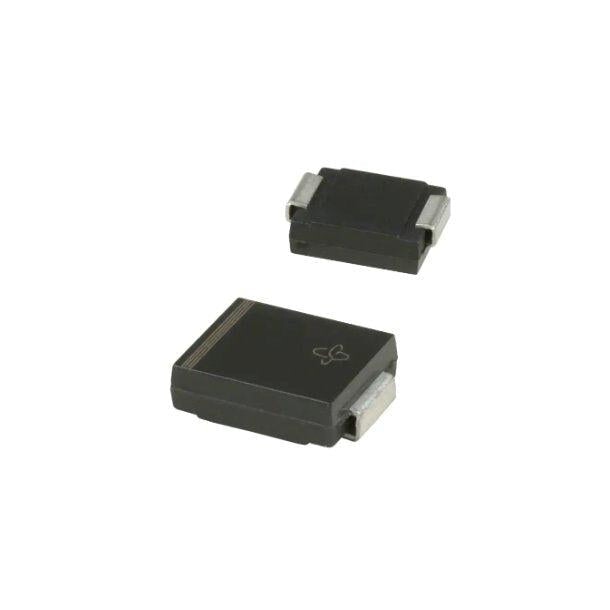

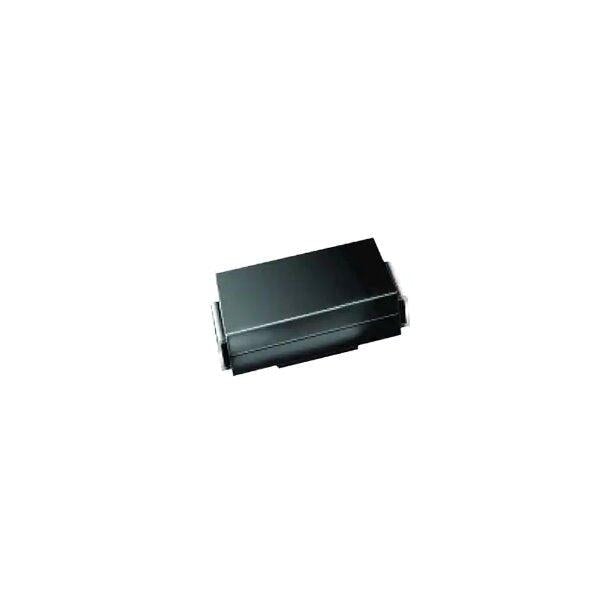

Vishay Discreet Semiconductor Part #VS-E7MH0112-M3/I

DESCRIPTION / APPLICATIONS State of the art hyperfast recovery rectifiers specifically designed with optimized performance of forward voltage drop and hyperfast recovery time. The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness, and reliability characteristics. These devices are intended for use in snubber, boost, lighting, as high frequency rectifiers, and freewheeling diodes. Their extremely optimized stored charge and low recovery current minimize the switching losses and reduce power dissipation in the switching element.

Features:

• Hyperfast recovery time, reduced Qrr, and soft recovery
• 175 °C maximum operating junction temperature
• Specified for output and snubber operation
• Low forward voltage drop
• Low leakage current
• Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
• Meets JESD 201 class 2 whisker test

VSH:VS-E7MH0112-M3/I

VS-E7MH0112-M3/I
