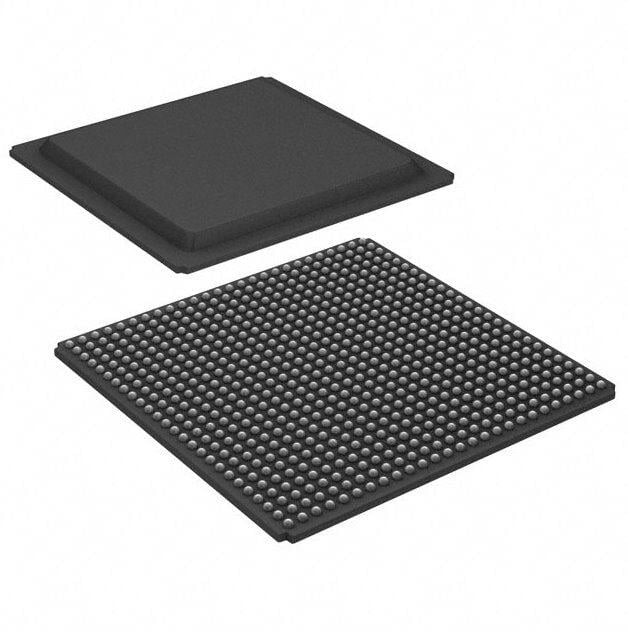

Xilinx Field Programmable Gate Array - FPGA - part # XA3S400-4FTG256Q

Xilinx Field Programmable Gate Array - FPGA - part # XA3S400-4FTG256Q builds on the success of the earlier XA Spartan-IIE family by increasing the amount of logic resources, the capacity of internal RAM, the total number of I/Os, and the overall level of performance as well as by improving clock management functions. These Spartan-3 enhancements, combined with advanced process technology, deliver more functionality and bandwidth per dollar than was previously possible, setting new standards in the programmable logic industry.

Features

• AEC-Q100 device qualification and full PPAP documentation support available in both extended temperature Q-grade and I-grade

• Guaranteed to meet full electrical specification over the TJ = –40°C to +125°C temperature range

• Revolutionary 90-nanometer process technology

• Low cost, high-performance logic solution for high-volume, automotive applications

♦ Three power rails: for core (1.2V), I/Os (1.2V to 3.3V), and auxiliary purposes (2.5V)

• SelectIO™ interface signaling

♦ Up to 487 I/O pins

♦ 622 Mb/s data transfer rate per I/O

♦ Eighteen single-ended signal standards

♦ Eight differential signal standards including LVDS

♦ Termination by Digitally Controlled Impedance

♦ Signal swing ranging from 1.14V to 3.45V

♦ Double Data Rate (DDR) support

• Logic resources

♦ Abundant logic cells with shift register capability

♦ Wide multiplexers

XLX:XA3S400-4FTG256Q

XA3S400-4FTG256Q
