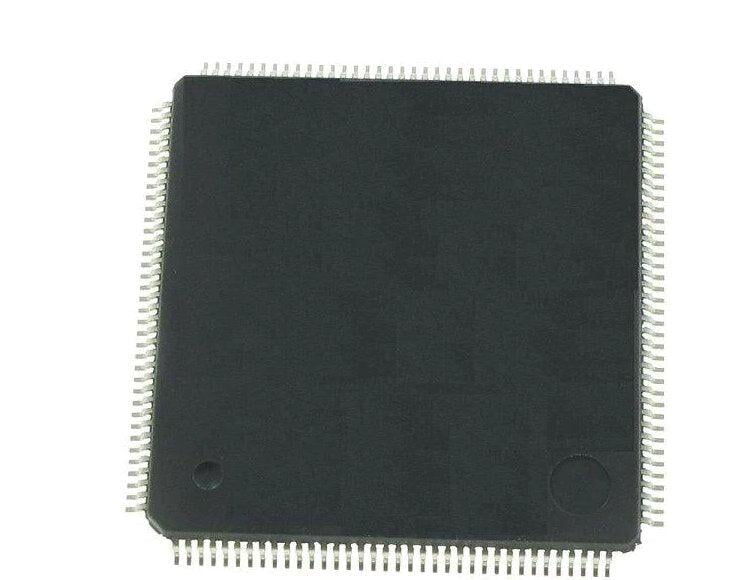

Xilinx Field Programmable Gate Array - FPGA - part # XC2C256-6VQG100C
Xilinx Field Programmable Gate Array - FPGA - part # XC2C256-6VQG100C
Xilinx Field Programmable Gate Array - FPGA - part # XC2C256-6VQG100C
Features
Optimized for 1.8V systems - Industry’s fastest low power CPLD - Densities from 32 to 512 macrocells • Industry’s best 0.18 micron CMOS CPLD - Optimized architecture for effective logic synthesis - Multi-voltage I/O operation — 1.5V to 3.3V • Advanced system features - Fastest in system programming · 1.8V ISP using IEEE 1532 (JTAG) interface - On-The-Fly Reconfiguration (OTF) - IEEE1149.1 JTAG Boundary Scan Test - Optional Schmitt trigger input (per pin) - Multiple I/O banks on all devices - Unsurpassed low power management · DataGATE external signal control - Flexible clocking modes · Optional DualEDGE triggered registers · Clock divider (÷ 2,4,6,8,10,12,14,16) · CoolCLOCK - Global signal options with macrocell control · Multiple global clocks with phase selection per macrocell · Multiple global output enables · Global set/reset - Abundant product term clocks, output enables and set/resets - Efficient control term clocks, output enables and set/resets for each macrocell and shared across function blocks - Advanced design security - Open-drain output option for Wired-OR and LED drive - Optional bus-hold, 3-state or weak pullup on select I/O pins - Optional configurable grounds on unused I/Os - Mixed I/O voltages compatible with 1.5V, 1.8V, 2.5V, and 3.3V logic levels on all parts
Xilinx CoolRunner™-II CPLDs deliver the high speed and ease of use associated with the XC9500/XL/XV CPLD family with the extremely low power versatility of the XPLA3 family in a single CPLD. This means that the exact same parts can be used for high-speed data communications/ computing systems and leading edge portable products, with the added benefit of In System Programming. Low power consumption and high-speed operation are combined into a single family that is easy to use and cost effective. Clocking techniques and other power saving features extend the users’ power budget.
XLX:XC2C256-6VQG100C
XC2C256-6VQG100C
