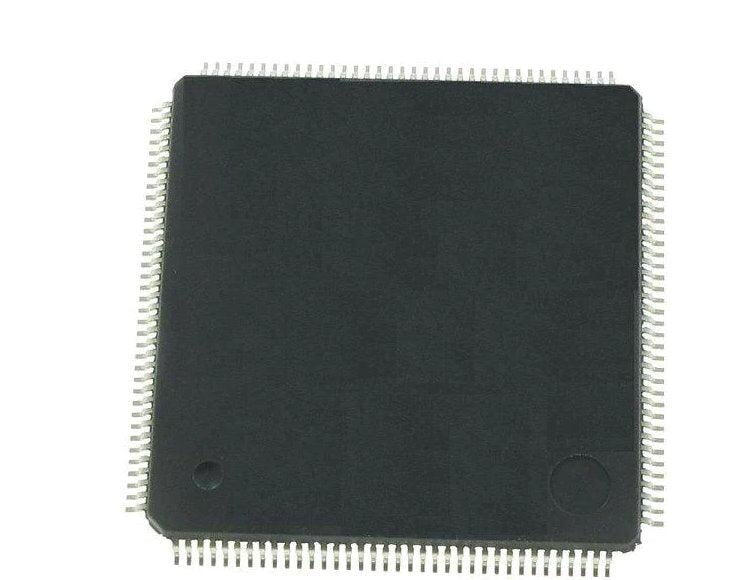

Xilinx Field Programmable Gate Array | FPGA | part # XC3S400-5TQG144C | DEX
Xilinx Field Programmable Gate Array | FPGA | part # XC3S400-5TQG144C | DEX
Couldn't load pickup availability
The SpartanĀ®-3 family of FPGA's is specifically designed to meet the needs of high volume, cost-sensitive consumer electronic applications. The eight-member family offers densities ranging from 50,000 to 5,000,000 system gates.
Features
Low-cost, high-performance logic solution for high-volume, consumer-oriented applications
⢠Densities up to 74,880 logic cells
⢠SelectIO⢠interface signaling
⢠Up to 633 I/O pins ⢠622+ Mb/s data transfer rate per I/O
⢠18 single-ended signal standards
⢠8 differential I/O standards including LVDS, RSDS
⢠Termination by Digitally Controlled Impedance
⢠Signal swing ranging from 1.14V to 3.465V
⢠Double Data Rate (DDR) support
⢠DDR, DDR2 SDRAM support up to 333 Mb/s
⢠Logic resources
⢠Abundant logic cells with shift register capability
⢠Wide, fast multiplexers ⢠Fast look-ahead carry logic
⢠Dedicated 18 x 18 multipliers
⢠JTAG logic compatible with IEEE 1149.1/1532
⢠SelectRAM⢠hierarchical memory
⢠Up to 1,872 Kbits of total block RAM
⢠Up to 520 Kbits of total distributed RAM
⢠Digital Clock Manager (up to four DCMs)
⢠Clock skew elimination
⢠Frequency synthesis
⢠High resolution phase shifting
⢠Eight global clock lines and abundant routing
Ā
XLX:XC3S400-5TQG144C
XC3S400-5TQG144C
