XILINX INC.

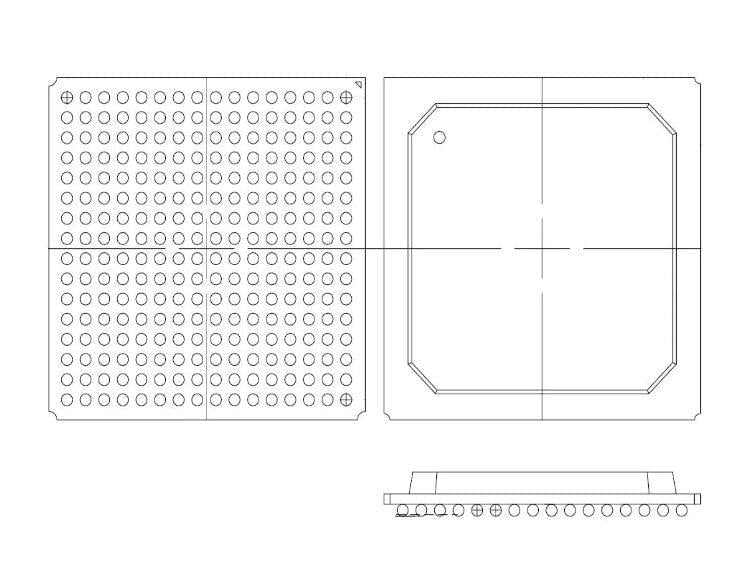

Xilinx Field Programmable Gate Array - FPGA - part # XC95144XL-10CS144I

Xilinx Field Programmable Gate Array - FPGA - part # XC95144XL-10CS144I

Regular price $33.67 USD
Regular price $33.67 USD Sale price $33.67 USD
Sale Sold out
Shipping calculated at checkout.

Xilinx Field Programmable Gate Array - FPGA - part # XC95144XL-10CS144I



Features • 6 ns pin-to-pin logic delays • System frequency up to 208 MHz • 288 macrocells with 6,400 usable gates • Available in small footprint packages - 144-pin TQFP (117 user I/O pins) - 208-pin PQFP (168 user I/O pins) - 256-pin BGA (192 user I/O pins) - 256-pin FBGA (192 user I/O pins) - 280-pin CSP (192 user I/O pins) - Pb-free available for all packages • Optimized for high-performance 3.3V systems - Low power operation - 5V tolerant I/O pins accept 5V, 3.3V, and 2.5V signals - 3.3V or 2.5V output capability - Advanced 0.35 micron feature size CMOS Fast FLASH™ technology • Advanced system features - In-system programmable - Superior pin-locking and routability with Fast CONNECT™ II switch matrix - Extra wide 54-input Function Blocks - Up to 90 product-terms per macrocell with individual product-term allocation - Local clock inversion with three global and one product-term clocks - Individual output enable per output pin with local inversion - Input hysteresis on all user and boundary-scan pin inputs - Bus-hold circuitry on all user pin inputs - Full IEEE Standard 1149.1 boundary-scan (JTAG) • Fast concurrent programming • Slew rate control on individual outputs • Enhanced data security features • Excellent quality and reliability - Endurance exceeding 10,000 program/erase cycles - 20 year data retention - ESD protection exceeding 2,000V • Pin-compatible with 5V-core XC95288 device in the 208-pin HQFP package WARNING: Programming temperature range of TA = 0° C to +70° C

e XC95288XL is a 3.3V CPLD targeted for high-performance, low-voltage applications in leading-edge communications and computing systems. It is comprised of 16 54V18 Function Blocks, providing 6,400 usable gates with propagation delays of 6 ns.



XLX:XC95144XL-10CS144I

XC95144XL-10CS144I
