XILINX INC.

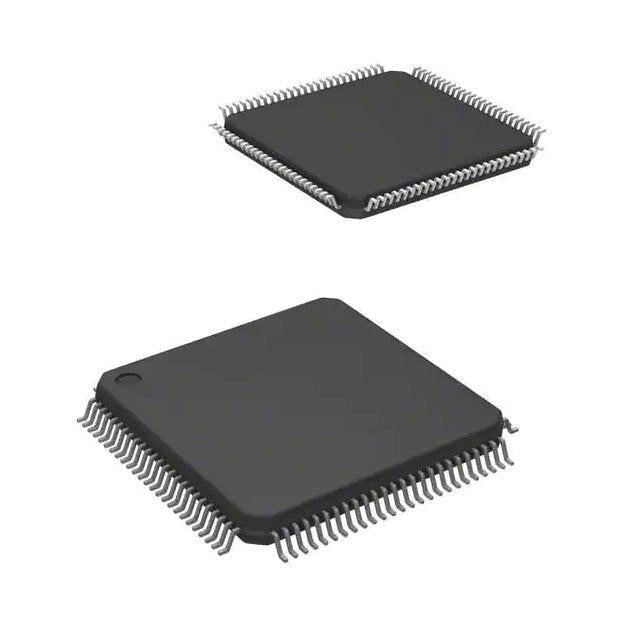

Xilinx Field Programmable Gate Array - FPGA - part # XC9572XL-10TQ100C

Xilinx Field Programmable Gate Array - FPGA - part # XC9572XL-10TQ100C

Regular price $11.27 USD
Regular price $11.27 USD Sale price $11.27 USD
Sale Sold out
Shipping calculated at checkout.

Xilinx Field Programmable Gate Array - FPGA - part # XC9572XL-10TQ100C



Features

5 ns pin-to-pin logic delays • System frequency up to 178 MHz • 72 macrocells with 1,600 usable gates • Available in small footprint packages - 44-pin PLCC (34 user I/O pins) - 44-pin VQFP (34 user I/O pins) - 48-pin CSP (38 user I/O pins) - 64-pin VQFP (52 user I/O pins) - 100-pin TQFP (72 user I/O pins) - Pb-free available for all packages • Optimized for high-performance 3.3V systems - Low power operation - 5V tolerant I/O pins accept 5V, 3.3V, and 2.5V signals - 3.3V or 2.5V output capability - Advanced 0.35 micron feature size CMOS Fast FLASH™ technology • Advanced system features - In-system programmable - Superior pin-locking and routability with Fast CONNECT™ II switch matrix - Extra wide 54-input Function Blocks - Up to 90 product-terms per macrocell with individual product-term allocation - Local clock inversion with three global and one product-term clocks - Individual output enable per output pin - Input hysteresis on all user and boundary-scan pin inputs - Bus-hold circuitry on all user pin inputs - Full IEEE Standard 1149.1 boundary-scan (JTAG) • Fast concurrent programming • Slew rate control on individual outputs • Enhanced data security features • Excellent quality and reliability - Endurance exceeding 10,000 program/erase cycles - 20 year data retention - ESD protection exceeding 2,000V • Pin-compatible with 5V-core XC9572 device in the 44-pin PLCC package and the 100-pin TQFP package WARNING: Programming temperature range of TA = 0° C to +70° C

The XC9572XL is a 3.3V CPLD targeted for high-performance, low-voltage applications in leading-edge communications and computing systems. It is comprised of four 54V18 Function Blocks, providing 1,600 usable gates with propagation delays of 5 ns.



XLX:XC9572XL-10TQ100C

XC9572XL-10TQ100C
