Xilinx Field Programmable Gate Array, Part #: EK-Z7-ZC702-G-J | FPGA | DEX

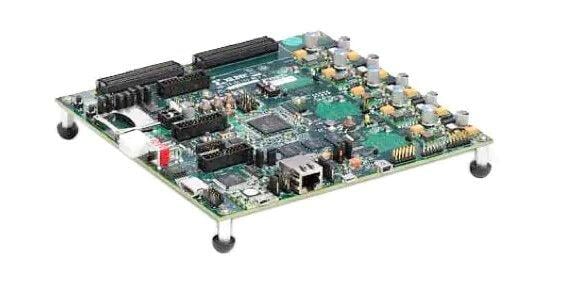

Xilinx Field Programmable Gate Array, Part #: EK-Z7-ZC702-G-J provides a hardware environment for developing atnd evaluating designs targeting the Zynq® XC7Z020-1CLG484C device. The ZC702 board provides features common to many embedded processing systems, including DDR3 component memory, a tri-mode Ethernet PHY, general purpose I/O, and two UART interfaces. Other features can be supported using VITA-57 FPGA mezzanine cards (FMC) attached to either of two low pin count (LPC) FMC connectors.

Features

• Zynq XC7Z020-1CLG484C device • 1 GB DDR3 component memory (four 256 Mb x 8 devices) • 128 Mb Quad SPI flash memory • USB 2.0 ULPI (UTMI+ low pin interface) transceiver • Secure Digital (SD) connector • USB JTAG interface using a Digilent module • Clock sources: ° Fixed 200 MHz LVDS oscillator (differential) ° I2C programmable LVDS oscillator (differential) ° Fixed 33.33 MHz LVCMOS oscillator (single-ended) • Ethernet PHY RGMII interface with RJ-45 connector • USB-to-UART bridge • HDMI codec • I2C bus
