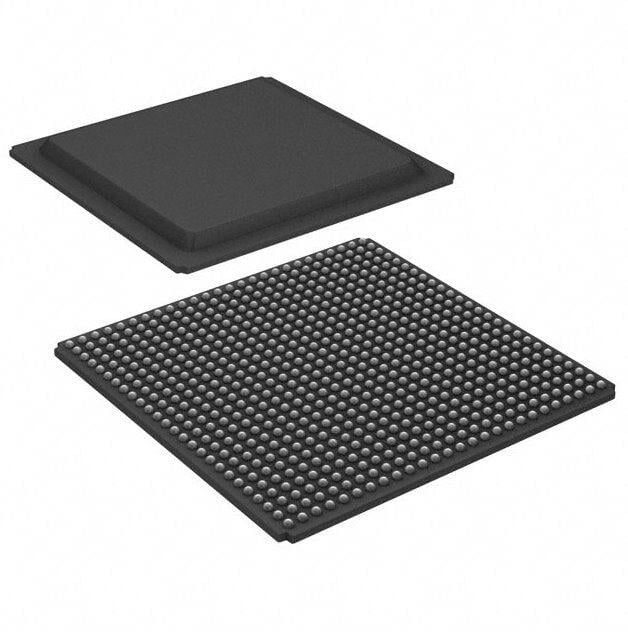

Xilinx Field Programmable Gate Array, Part #: XC3S1200E-4FGG400I | FPGA | DEX
Xilinx Field Programmable Gate Array, Part #: XC3S1200E-4FGG400I | FPGA | DEX
Xilinx Field Programmable Gate Array, Part #: XC3S1200E-4FGG400I builds on the success of the earlier Spartan-3 family by increasing the amount of logic per I/O, significantly reducing the cost per logic cell. New features improve system performance and reduce the cost of configuration. These Spartan-3E FPGA enhancements, combined with advanced 90 nm process technology, deliver more functionality and bandwidth per dollar than was previously possible, setting new standards in the programmable logic industry.
Features
• Very low-cost, high-performance logic solution for high-volume, consumer-oriented applications
• Proven advanced 90-nanometer process technology
• Multi-voltage, multi-standard SelectIO™ interface pins
• Up to 376 I/O pins or 156 differential signal pairs
• LVCMOS, LVTTL, HSTL, and SSTL single-ended signal standards
• 3.3V, 2.5V, 1.8V, 1.5V, and 1.2V signaling
• 622+ Mb/s data transfer rate per I/O
• True LVDS, RSDS, mini-LVDS, differential HSTL/SSTL differential I/O
• Enhanced Double Data Rate (DDR) support
• DDR SDRAM support up to 333 Mb/s
• Abundant, flexible logic resources
• Densities up to 33,192 logic cells, including optional shift register or distributed RAM support
• Efficient wide multiplexers, wide logic
• Fast look-ahead carry logic
• Enhanced 18 x 18 multipliers with optional pipeline
• IEEE 1149.1/1532 JTAG programming/debug port
• Hierarchical SelectRAM™ memory architecture
• Up to 648 Kbits of fast block RAM
• Up to 231 Kbits of efficient distributed RAM
• Up to eight Digital Clock Managers (DCMs)
• Clock skew elimination (delay locked loop)
• Frequency synthesis, multiplication, division
• High-resolution phase shifting
• Wide frequency range (5 MHz to over 300 MHz)
• Eight global clocks plus eight additional clocks per each half of device, plus abundant low-skew routing
• Configuration interface to industry-standard PROMs
• Low-cost, space-saving SPI serial Flash PROM
• x8 or x8/x16 parallel NOR Flash PROM
• Low-cost Xilinx® Platform Flash with JTAG
• Complete Xilinx ISE® and WebPACK™ software
• MicroBlaze™ and PicoBlaze embedded processor cores
• Fully compliant 32-/64-bit 33 MHz PCI support (66 MHz in some devices)

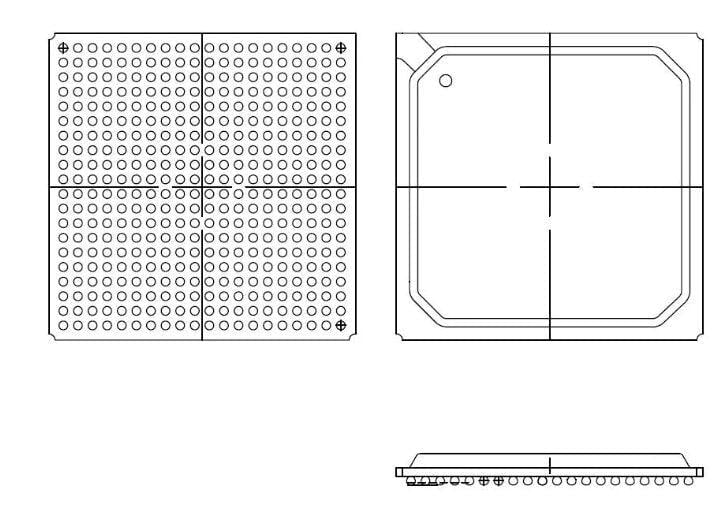

• Low-cost QFP and BGA packaging options
• Common footprints support easy density migration
• Pb-free packaging options
• XA Automotive version available
