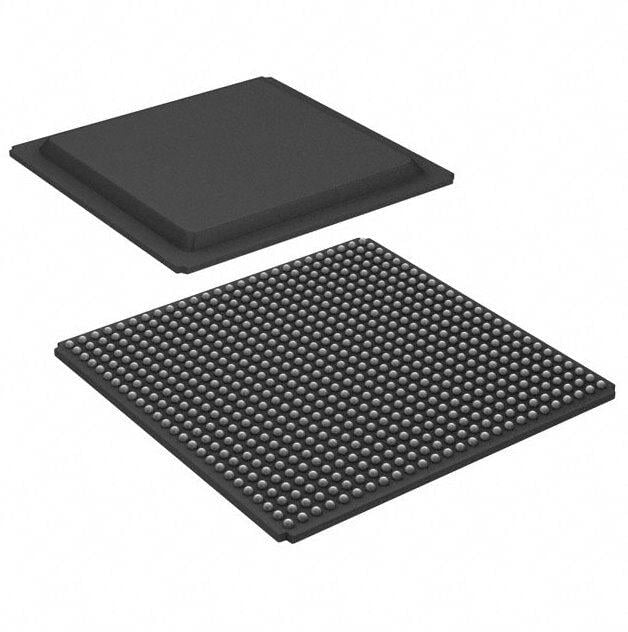

Xilinx Field Programmable Gate Array, Part #: XC3S1500-5FGG320C | FPGA | DEX

Xilinx Field Programmable Gate Array, Part #: XC3S1500-5FGG320C | FPGA | DEX

Regular price $193.69 USD
Regular price $193.69 USD Sale price $193.69 USD
Sale Sold out
Shipping calculated at checkout.

Xilinx Field Programmable Gate Array, Part #: XC3S1500-5FGG320C builds on the success of the earlier Spartan-IIE family by increasing the amount of logic resources, the capacity of internal RAM, the total number of I/Os, and the overall level of performance as well as by improving clock management functions. Numerous enhancements derive from the Virtex®-II platform technology. These Spartan-3 FPGA enhancements, combined with advanced process technology, deliver more functionality and bandwidth per dollar than was previously possible, setting new standards in the programmable logic industry. Because of their exceptionally low cost, Spartan-3 FPGAs are ideally suited to a wide range of consumer electronics applications, including broadband access, home networking, display/projection and digital television equipment. The Spartan-3 family is a superior alternative to mask programmed ASICs. FPGAs avoid the high initial cost, the lengthy development cycles, and the inherent inflexibility of conventional ASICs. Also, FPGA programmability permits design upgrades in the field with no hardware replacement necessary, an impossibility with ASICs.



Features

• Low-cost, high-performance logic solution for high-volume, consumer-oriented applications • Densities up to 74,880 logic cells • SelectIO™ interface signaling • Up to 633 I/O pins • 622+ Mb/s data transfer rate per I/O • 18 single-ended signal standards • 8 differential I/O standards including LVDS, RSDS • Termination by Digitally Controlled Impedance • Signal swing ranging from 1.14V to 3.465V • Double Data Rate (DDR) support • DDR, DDR2 SDRAM support up to 333 Mb/s • Logic resources • Abundant logic cells with shift register capability • Wide, fast multiplexers • Fast look-ahead carry logic • Dedicated 18 x 18 multipliers • JTAG logic compatible with IEEE 1149.1/1532 • SelectRAM™ hierarchical memory • Up to 1,872 Kbits of total block RAM • Up to 520 Kbits of total distributed RAM • Digital Clock Manager (up to four DCMs) • Clock skew elimination • Frequency synthesis • High resolution phase shifting • Eight global clock lines and abundant routing • Fully supported by Xilinx ISE® and WebPACK™ software development systems • MicroBlaze™ and PicoBlaze™ processor, PCI®, PCI Express® PIPE Endpoint, and other IP cores • Pb-free packaging options • Automotive Spartan-3 XA Family variant



XLX:XC3S1500-5FGG320C

XC3S1500-5FGG320C
