Xilinx Field Programmable Gate Array, Part #: XC95288XL-7TQG144I | FPGA | DEX

Xilinx Field Programmable Gate Array, Part #: XC95288XL-7TQG144I | FPGA | DEX

Regular price $83.86 USD
Regular price $83.86 USD Sale price $83.86 USD
Sale Sold out
Shipping calculated at checkout.

Xilinx Field Programmable Gate Array, Part #: XC95288XL-7TQG144I has 6 ns pin-to-pin logic delays and system frequency up to 208 MHz, along with the features below.

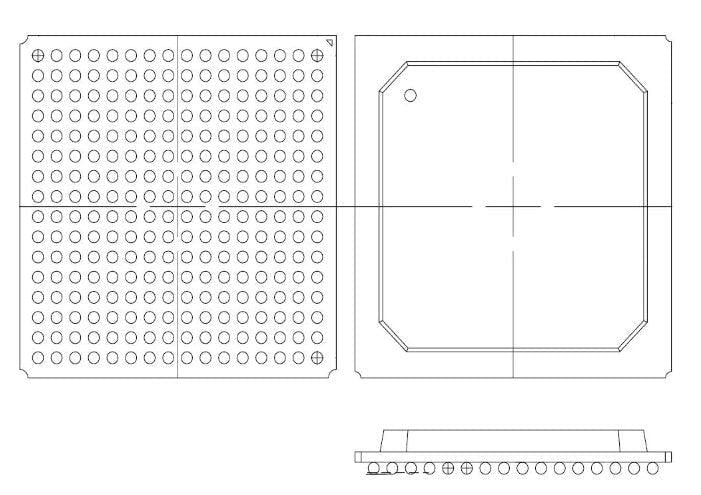

• 288 macrocells with 6,400 usable gates • Available in small footprint packages - 144-pin TQFP (117 user I/O pins) - 208-pin PQFP (168 user I/O pins) - 256-pin BGA (192 user I/O pins) - 256-pin FBGA (192 user I/O pins) - 280-pin CSP (192 user I/O pins) - Pb-free available for all packages • Optimized for high-performance 3.3V systems - Low power operation - 5V tolerant I/O pins accept 5V, 3.3V, and 2.5V signals - 3.3V or 2.5V output capability - Advanced 0.35 micron feature size CMOS Fast FLASH™ technology • Advanced system features - In-system programmable - Superior pin-locking and routability with Fast CONNECT™ II switch matrix - Extra wide 54-input Function Blocks - Up to 90 product-terms per macrocell with individual product-term allocation - Local clock inversion with three global and one product-term clocks - Individual output enable per output pin with local inversion - Input hysteresis on all user and boundary-scan pin inputs - Bus-hold circuitry on all user pin inputs - Full IEEE Standard 1149.1 boundary-scan (JTAG) • Fast concurrent programming • Slew rate control on individual outputs • Enhanced data security features • Excellent quality and reliability - Endurance exceeding 10,000 program/erase cycles - 20 year data retention - ESD protection exceeding 2,000V • Pin-compatible with 5V-core XC95288 device in the 208-pin HQFP package WARNING: Programming temperature range of TA = 0° C to +70° C
